Installation [08/2015 - 11/2017]: Procedure

1. Install the steering column assembly with the 2 nuts and bolt.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

2. Connect each of the connectors to the steering column assembly.
3. Connect the wire harness clamps to the steering column assembly.
   WARNING:

   Wipe any dirt off the installation plane and column body side.

   NOTE:

   Be careful not to scratch or soil the installation plane of the steering column.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

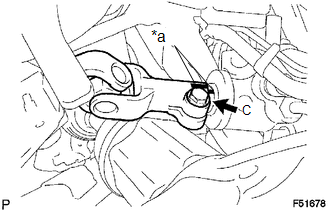

1. Align the matchmarks on the power steering link and No. 2 steering intermediate shaft.
   TEXT IN ILLUSTRATION



   *a

   Matchmark

2. Install the No. 2 steering intermediate shaft to the power steering link with bolt C.

   Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

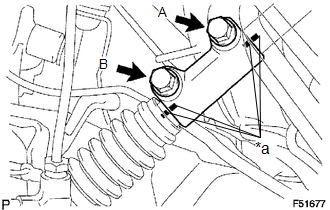

1. Align the matchmarks on the steering intermediate shaft assembly and steering sliding yoke.
   TEXT IN ILLUSTRATION



   *a	Matchmarks

2. Install the steering sliding yoke to the steering intermediate shaft assembly and slide it upward.
3. Align the matchmarks on the No. 2 steering intermediate shaft and steering sliding yoke.
4. Install the steering sliding yoke to the No. 2 steering intermediate shaft with bolts A and B.

   Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

1. Install the No. 1 engine under cover sub-assembly with the 4 bolts.

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

1. Install the steering column hole cover with the 4 clips.

(Refer to INSTALLATION [08/2015 - 11/2017] )

1. Engage the 3 claws to install the combination switch assembly with spiral cable sub-assembly to the steering column assembly.
2. Connect the connectors to the combination switch assembly with spiral cable sub-assembly.

1. Engage the claw to install the upper steering column cover.

1. Engage the 2 claws to install the lower steering column cover.
2. Install the lower steering column cover with the 2 screws.
3. Engage the claw.

Refer to PROCEDURE - Step 5

1. Align the matchmarks on the steering wheel assembly and steering main shaft assembly.
2. Install the steering wheel assembly set nut.

   Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

(Refer to INSTALLATION [08/2015 - 11/2017] )

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

(Refer to DIAGNOSIS SYSTEM [08/2015 - 09/2019] )
