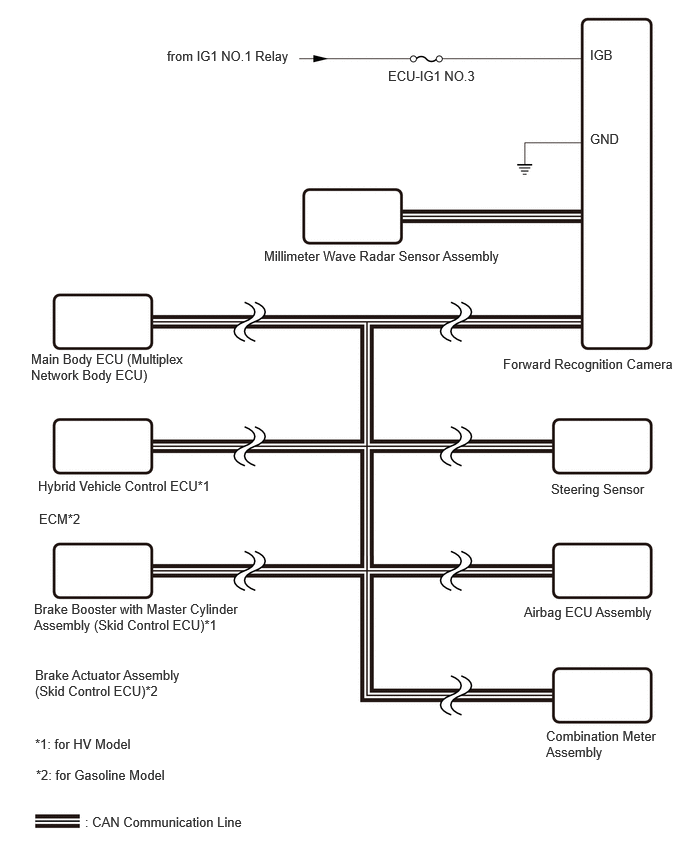

Home >> Toyota >> 2021 >> RAV4 XLE Premium, AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Pre-Collision System - Diagnostics - Introduction >> Pre-Collision System >> System Diagram [11/2018 - 12/2021] >> System Diagram [11/2018 - 12/2021]
