Components [11/2018 - 12/2021]

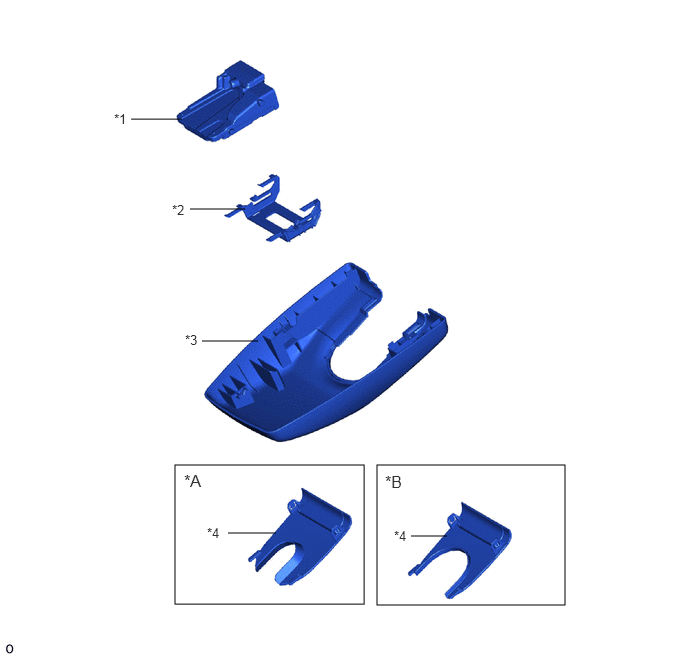

Fig 1: Front Camera Replacement Components [11/2018 - 12/2021]
GTY872729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Digital Inner Mirror *B w/ Digital Inner Mirror
*1 FORWARD RECOGNITION CAMERA *2 FORWARD RECOGNITION LATCH
*3 NO. 1 FORWARD RECOGNITION COVER *4 NO. 2 FORWARD RECOGNITION COVER
