Removal [08/2020 - 12/2021]: Procedure

PRECAUTION

WARNING:

Be sure to read precaution thoroughly before servicing.

Refer to PRECAUTION [08/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [11/2018 - ]

REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to REMOVAL [08/2020 - 12/2021]

REMOVE STEERING SENSOR

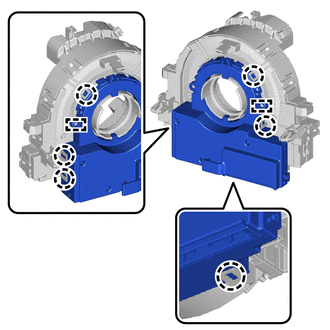

Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.

NOTE:

Do not damage the claws or pins of the spiral cable sub-assembly.
