Installation [11/2018 - ]: Procedure

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   • Keep the tip of the front speed sensor and installation hole free of foreign matter.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
2. Engage the clamp to the front shock absorber assembly.

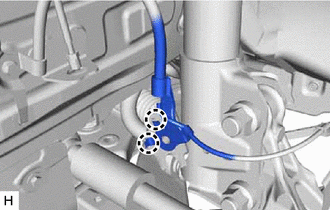

3. Engage the 2 claws of front speed sensor clamp to the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

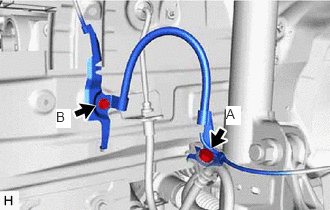

4. Install the front flexible hose to the front shock absorber assembly with the bolt (A).

   Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Install the front speed sensor clamp with the bolt (B).

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

6. Engage the clamp to the vehicle body.
7. Connect the front speed sensor connector.
8. Return the front fender liner to its original position.

1. Install the front fender liner with the 7 clips and new grommet.
2. Install the 5 screws.

Refer to INSTALLATION [11/2018 - ]

• w/ Vacuum Brake Booster:

  Refer to TEST MODE PROCEDURE [11/2018 - ]

• w/o Vacuum Brake Booster:

  Refer to TEST MODE PROCEDURE [11/2018 - 02/2019] , or refer to TEST MODE PROCEDURE [02/2019 - 08/2020] , or refer to TEST MODE PROCEDURE [08/2020 - 12/2021] , or refer to TEST MODE PROCEDURE [12/2021 - ]
