Components [12/2018 - ]

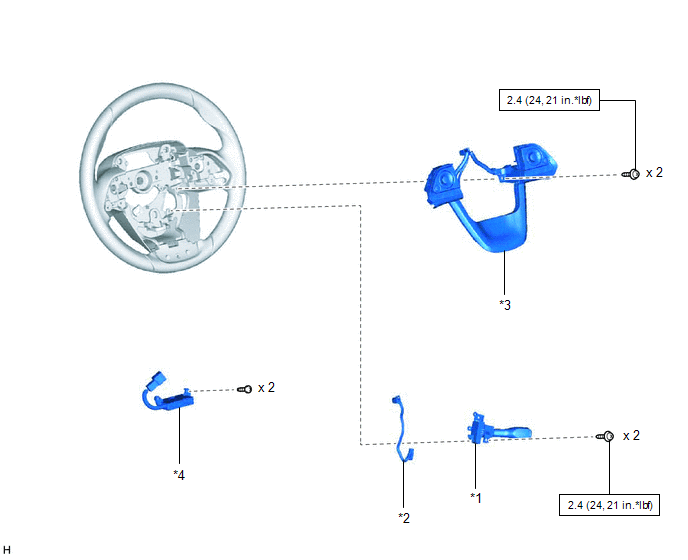

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications
GTY907223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRUISE CONTROL MAIN SWITCH *2 CRUISE CONTROL SWITCH WIRE
*3 STEERING PAD SWITCH ASSEMBLY *4 STEERING WHEEL HEATER CONTROL ASSEMBLY
N.m (kgf.cm, ft./lbf): Specified torque - -
