Removal [11/2015 - 12/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [11/2015 - 11/2017] , or refer to PRECAUTION [11/2017 - 12/2018]
DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 2
REMOVE REAR WHEEL
Refer to PROCEDURE - Step 1
LOOSEN NO. 1 WIRE ADJUSTING NUT
Refer to PROCEDURE - Step 3
REMOVE PARKING BRAKE LEVER PROTECTOR
Refer to PROCEDURE - Step 9 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - ]
SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
Refer to PROCEDURE - Step 7 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 7 [11/2017 - 12/2018]
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
Refer to PROCEDURE - Step 7
REMOVE REAR DISC
Refer to PROCEDURE - Step 17 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 17 [11/2017 - 12/2018]

DISCONNECT SKID CONTROL SENSOR WIRE

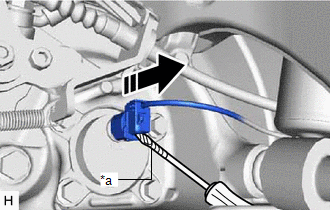

Using a screwdriver with its tip wrapped with protective tape, disconnect the skid control sensor wire connector from the rear axle hub and bearing assembly.

NOTE:

Be careful not to damage the rear axle hub and bearing assembly or connector cover.

*a	Protective Tape

REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
1. Remove the rear axle hub and bearing assembly.
  Refer to PROCEDURE - Step 10

  HINT:
  - The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
  - If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
