Removal [08/2019 - 07/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2019 - ]

    Refer to PRECAUTION [12/2018 - 07/2020]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 14

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER

    Refer to PROCEDURE - Step 16

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY

    Refer to PROCEDURE - Step 17

  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

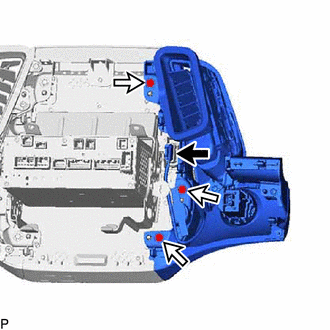

    1. Disconnect the connector.
      GTY689290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.

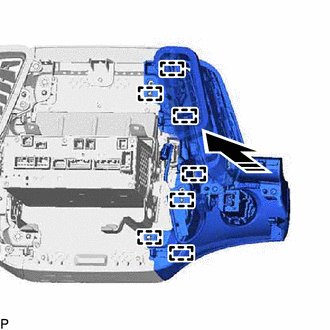

    3. Disengage the 7 guides to remove the instrument cluster finish panel sub-assembly as shown in the illustration.
      GTY704532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

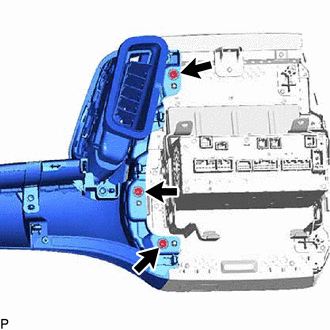

    1. Remove the 3 screws.
      GTY689294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

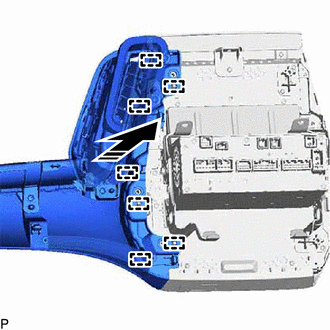

    2. Disengage the 7 guides to remove the center instrument cluster finish panel sub-assembly as shown in the illustration.
      GTY715231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. DISCONNECT STEREO COMPONENT TUNER ASSEMBLY WITH WIRE (w/ Satellite Radio)

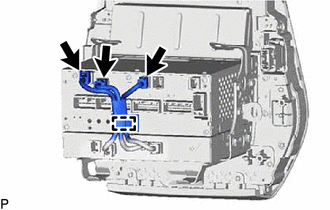

    1. Disengage the clamp.
      GTY689297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 connectors to disconnect the stereo component tuner assembly with wire.
  9. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

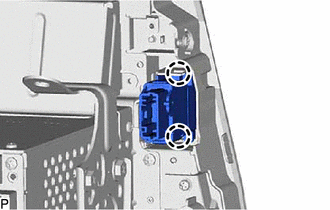

    1. Disengage the 2 claws to remove the hazard warning signal switch assembly.
      GTY726473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 RADIO BRACKET

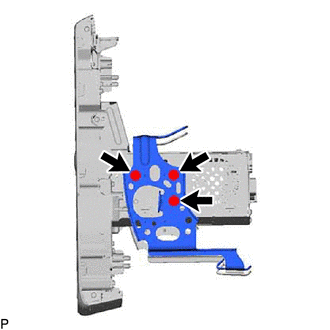

    1. w/o Satellite Radio:
      1. Remove the 3 screws and No. 1 radio bracket.
        GTY688671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Satellite Radio:

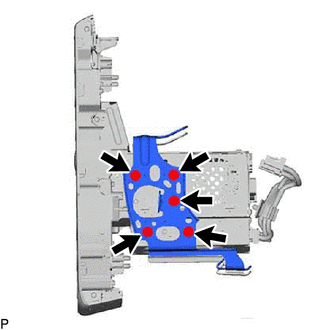

      1. Remove the 5 screws and No. 1 radio bracket.
        GTY688687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 RADIO BRACKET
    1. w/o Satellite Radio:

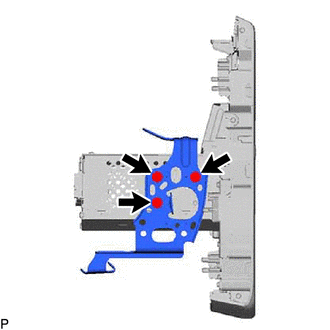

      1. Remove the 3 screws and No. 2 radio bracket.
        GTY688688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

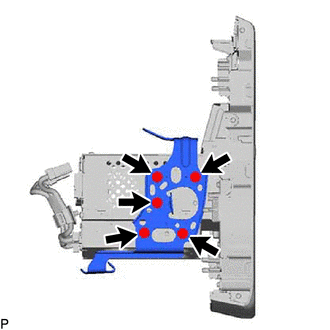

    2. w/ Satellite Radio:
      1. Remove the 5 screws and No. 2 radio bracket.
        GTY688689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE STEREO COMPONENT TUNER ASSEMBLY WITH WIRE (w/ Satellite Radio)
  13. REMOVE NAVIGATION RECEIVER ASSEMBLY
