Adjustment [07/2020 - ]: Procedure
- INSPECT TIRES
Refer to PROCEDURE - Step 1
- MEASURE VEHICLE HEIGHT
See step 2
- INSPECT CAMBER NOTE:
Inspect while the vehicle is unloaded.
- Install a camber-caster-kingpin gauge.
*a Camber-caster-kingpin Gauge - Inspect the camber.
Camber (Unloaded Vehicle) (for 2WD)
Camber Inclination Right-left Difference -0°56' +/- 0°45' (-0.93° +/- 0.75°)
-0°41' +/- 0°45' (-0.68° +/- 0.75°)*A0°45' (0.75°) or less () *A: for Rough Road Area Specification Vehicles Camber (Unloaded Vehicle) (for AWD)
Camber Inclination Right-left Difference -1°02' +/- 0°45' (-1.03° +/- 0.75°) 0°45' (0.75°) or less HINT:
Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
- Install a camber-caster-kingpin gauge.
- INSPECT TOE-IN NOTE:
Inspect while the vehicle is unloaded.
- Bounce the vehicle up and down at the corners to stabilize the suspension.
- Release the parking brake and move the shift lever to N.
- Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step A)
- Put tread center marks on the rearmost points of the rear wheels and measure the distance between the marks (dimension B).
*a Tread Center Mark *b Dimension B Front of the Vehicle - Slowly push the vehicle straight ahead to cause the rear wheels to rotate 180°. Use the rear tire valve as a reference point.
HINT:
Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step A again.
- Measure the distance between the tread center marks on the front of the rear wheels (dimension A).
*a Dimension A Front of the Vehicle Toe-in (Unloaded Vehicle) (for 2WD)
Specified Condition C + D: 0°10' +/- 0°11' (0.16° +/- 0.18°)
C + D: 0°02' +/- 0°11' (0.03° +/- 0.18°)*AB - A: 1.7 +/- 2.0 mm (0.0669 +/- 0.0787 in.)
B - A: 0.4 +/- 2.0 mm (0.0157 +/- 0.0787 in.)*A() *A: for Rough Road Area Specification Vehicles Toe-in (Unloaded Vehicle) (for AWD)
Specified Condition C + D: 0°12' +/- 0°11' (0.21° +/- 0.18°) B - A: 2.1 +/- 2.0 mm (0.0827 +/- 0.0787 in.) HINT:
Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the rear suspension toe adjust cam sub-assembly.
- ADJUST TOE-IN (for 2WD)
- Loosen the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).NOTE:
Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

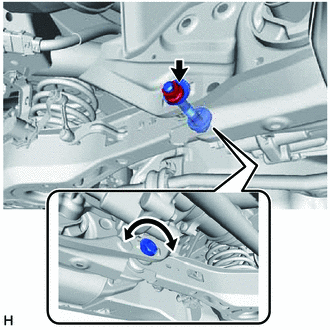

- Rotate the rear suspension toe adjust cam sub-assembly to adjust the toe-in.
Toe-in (Unloaded Vehicle)
Specified Condition C + D: 0°10' +/- 0°11' (0.16° +/- 0.18°)
C + D: 0°02' +/- 0°11' (0.03° +/- 0.18°)*AB - A: 1.7 +/- 2.0 mm (0.0669 +/- 0.0787 in.)
B - A: 0.4 +/- 2.0 mm (0.0157 +/- 0.0787 in.)*A() *A: for Rough Road Area Specification Vehicles HINT:
- Rotating the rear suspension toe adjust cam sub-assembly by one notch changes the toe by approximately 2.9 mm (0.114 in.).
- Perform adjustments so that the value is as close as possible to the median of the specified range.
Front of the Vehicle - Tighten the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).
Torque: 100 N.m (1020 kgf.cm, 74 ft./lbf)
NOTE:Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
- Loosen the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).
- ADJUST TOE-IN (for AWD)
- Loosen the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).NOTE:
Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
- Rotate the rear suspension toe adjust cam sub-assembly to adjust the toe-in.
Toe-in (Unloaded Vehicle)
Specified Condition C + D: 0°12' +/- 0°11' (0.21° +/- 0.18°) B - A: 2.1 +/- 2.0 mm (0.0827 +/- 0.0787 in.) HINT:
- Rotating the rear suspension toe adjust cam sub-assembly by one notch changes the toe by approximately 2.9 mm (0.114 in.).
- Perform adjustments so that the value is as close as possible to the median of the specified range.
Front of the Vehicle - Tighten the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).
Torque: 100 N.m (1020 kgf.cm, 74 ft./lbf)
NOTE:Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
- Loosen the nut of the rear No. 2 suspension arm assembly (on the rear suspension member sub-assembly side).
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION
Refer to CALIBRATION [07/2020 - ]
