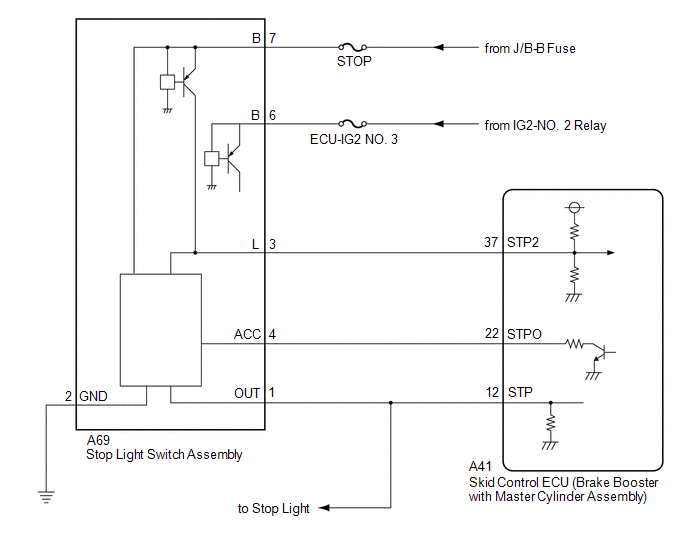

DTC C1A4B: Stop Light Relay Circuit [12/2018 - 07/2020]: Wiring Diagram

GTY900486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
