Components [04/2018 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

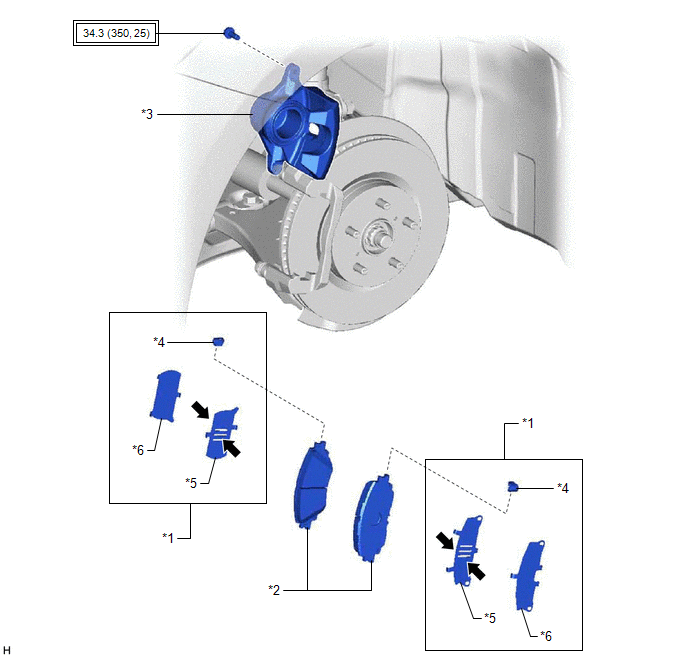

| Callout | Description | Callout | Description |
| *1 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | FRONT DISC BRAKE PAD |
| *3 | FRONT DISC BRAKE CYLINDER ASSEMBLY | *4 | FRONT DISC BRAKE PAD WEAR INDICATOR PLATE |
| *5 | FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *6 | FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | Disc brake grease |
