Components [11/2015 - ]

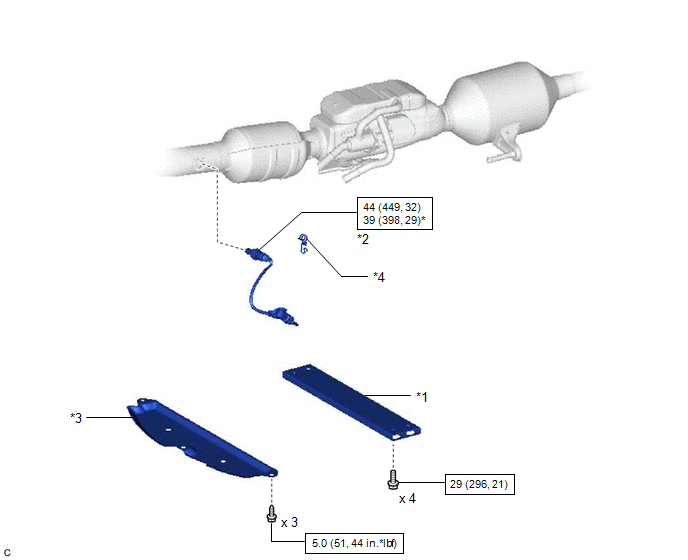

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY568981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT CENTER FLOOR BRACE *2 HEATED OXYGEN SENSOR
*3 NO. 2 ENGINE UNDER COVER *4 WIRE HARNESS CLAMP BRACKET
N.m (kgf.cm, ft./lbf): Specified torque * For use with SST
