Components [11/2015 - 12/2018]

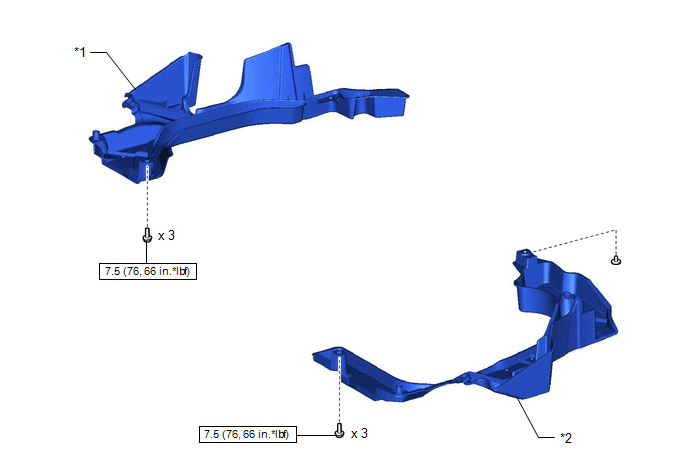

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
Callout	Description	Callout	Description
*1	NO. 1 FLOOR UNDER COVER ASSEMBLY	*2	REAR FLOOR SIDE MEMBER COVER LH
	N.m (kgf.cm, ft./lbf): Specified torque	-	-

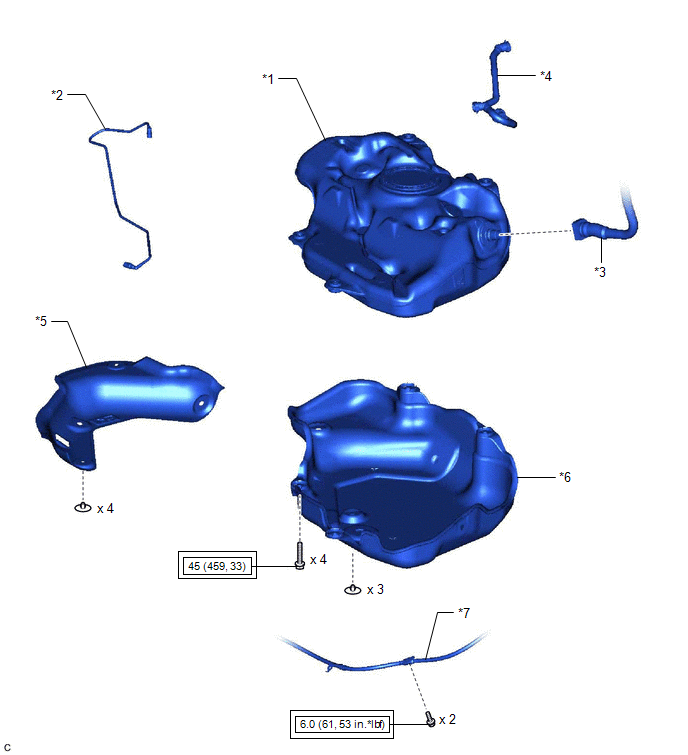

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FUEL TANK ASSEMBLY	*2	FUEL TANK MAIN TUBE SUB-ASSEMBLY
*3	FUEL TANK TO FILLER PIPE HOSE	*4	FUEL TANK VENT HOSE SUB-ASSEMBLY
*5	NO. 1 FUEL TANK PROTECTOR	*6	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
*7	NO. 3 PARKING BRAKE CABLE ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping":N.m (kgf.cm, ft./lbf)	-	-
