Components [12/2018 - ]

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
Callout	Description	Callout	Description
*1	CENTER REAR SEATBACK HINGE SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)	-	-

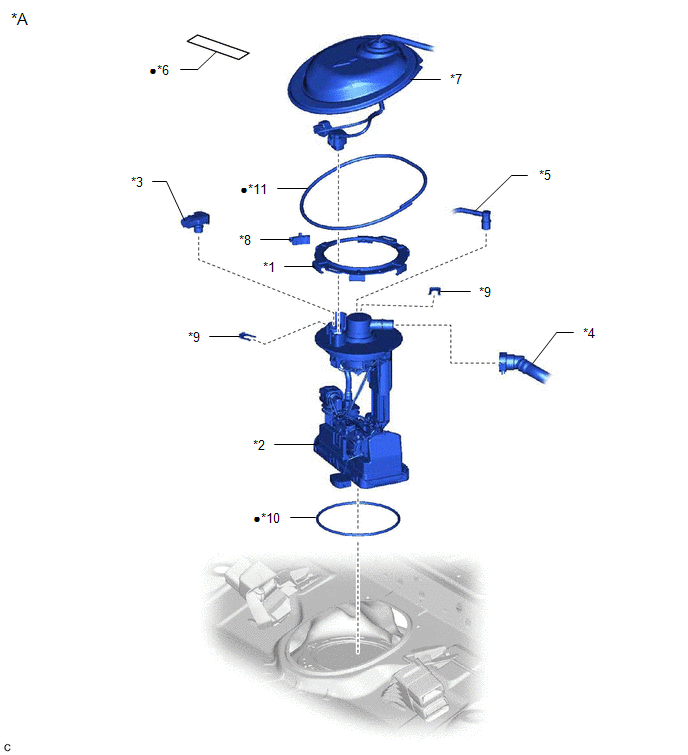

Fig 2: Fuel Pump Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	FUEL PUMP GAUGE RETAINER	*2	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
*3	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)	*4	FUEL TANK VENT HOSE SUB-ASSEMBLY
*5	FUEL TANK MAIN TUBE SUB-ASSEMBLY	*6	NO. 3 WIRING HARNESS PROTECTOR
*7	REAR FLOOR SERVICE HOLE COVER	*8	NO. 1 FUEL TUBE CLAMP
*9	TUBE JOINT CLIP	*10	FUEL SUCTION TUBE SET GASKET
*11	BUTYL TAPE	-	-
•	Non-reusable part	-	-

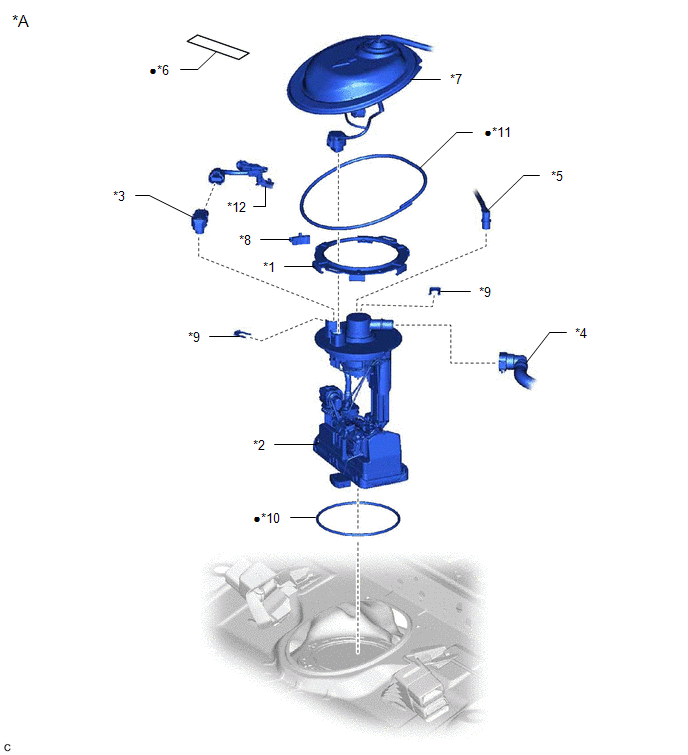

Fig 3: Fuel Pump Replacement Components (3 Of 4)

Callout	Description	Callout	Description
*A	for AWD	-	-
*1	FUEL PUMP GAUGE RETAINER	*2	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
*3	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)	*4	FUEL TANK VENT HOSE SUB-ASSEMBLY
*5	FUEL TANK MAIN TUBE SUB-ASSEMBLY	*6	NO. 3 WIRING HARNESS PROTECTOR
*7	REAR FLOOR SERVICE HOLE COVER	*8	NO. 1 FUEL TUBE CLAMP
*9	TUBE JOINT CLIP	*10	FUEL SUCTION TUBE SET GASKET
*11	BUTYL TAPE	*12	NO. 1 FUEL TUBE CLAMP WITH FUEL GAUGE WIRE
•	Non-reusable part	-	-

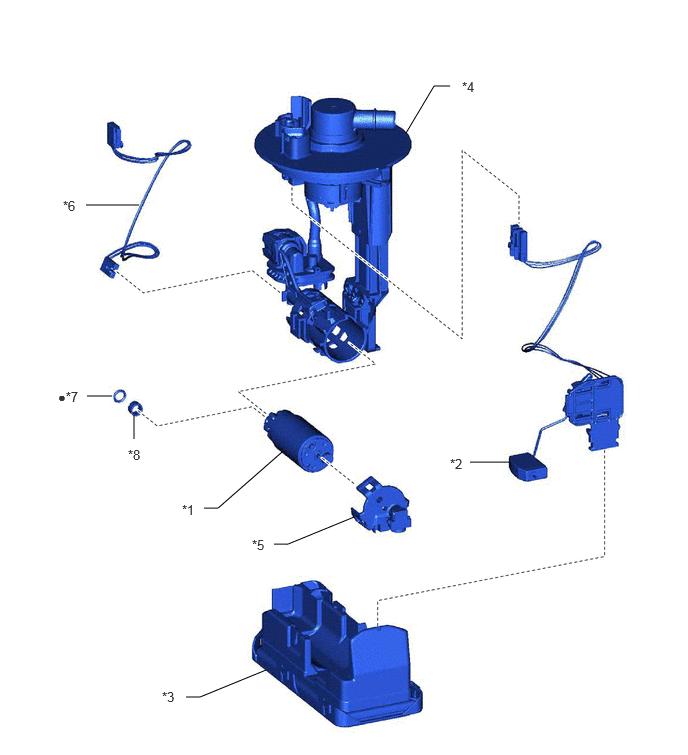

Fig 4: Fuel Pump Replacement Components (4 Of 4)

Callout	Description	Callout	Description
*1	FUEL PUMP	*2	FUEL SENDER GAUGE ASSEMBLY
*3	NO. 1 FUEL SUB-TANK	*4	FUEL SUCTION PLATE SUB-ASSEMBLY
*5	NO. 2 FUEL SUCTION SUPPORT	*6	FUEL PUMP HARNESS
*7	O-RING	*8	FUEL PUMP SPACER
•	Non-reusable part	-	-
