Components [12/2018 - ]

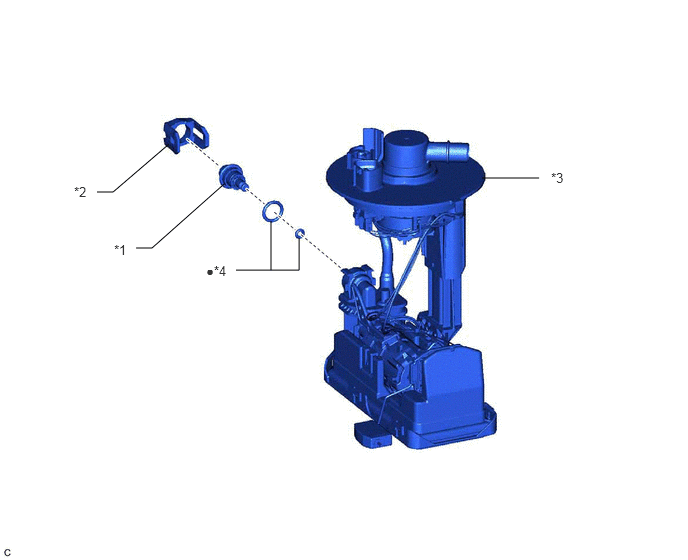

Fig 1: Fuel Pressure Regulator Replacement Components
GTY877136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Description Callout
*1 FUEL PRESSURE REGULATOR ASSEMBLY *2 FUEL PRESSURE REGULATOR HOLDER
*3 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY *4 O-RING
• Non-reusable part - -
