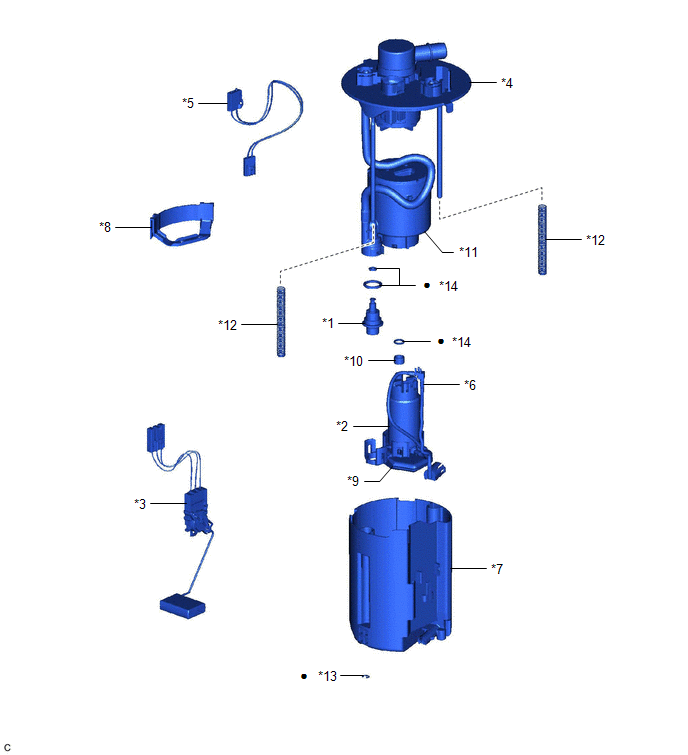

Components [11/2015 - 12/2018]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PRESSURE REGULATOR ASSEMBLY | *2 | FUEL PUMP WITH FILTER ASSEMBLY |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | FUEL PUMP HARNESS | *6 | FUEL PUMP FILTER HOSE |
| *7 | NO. 1 FUEL SUB-TANK | *8 | NO. 1 FUEL SUCTION SUPPORT |
| *9 | SUCTION FILTER | *10 | FUEL PUMP SPACER |
| *11 | FUEL FILTER | *12 | SPRING |
| *13 | E-RING | *14 | O-RING |
| • | Non-reusable part | - | - |
