Removal [11/2015 - 11/2017]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  2. REMOVE POWER SWITCH

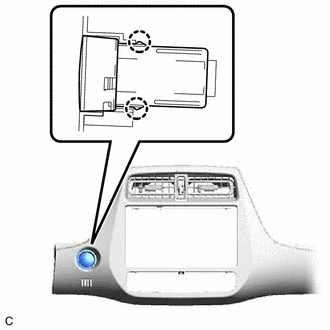

    1. Disengage the 2 claws and remove the power switch.
      GTY609202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
