Starting System Power Switch - Service Information
>>
Power Switch
>>
Components [11/2015 - 11/2017]
Components [11/2015 - 11/2017]

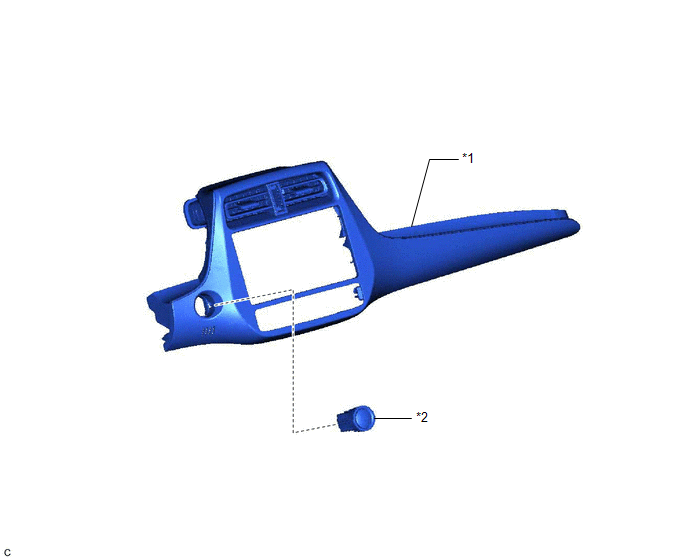

Fig 1: Power Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*2
POWER SWITCH
