Components [11/2015 - ]

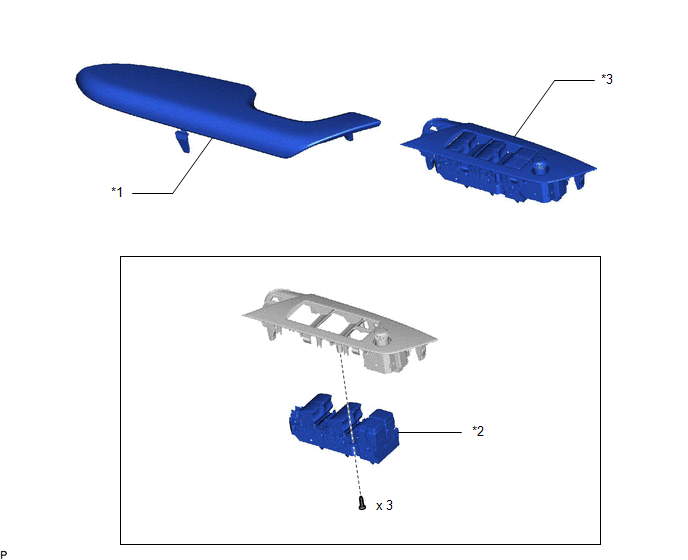

Fig 1: Power Window Master Switch Replacement Components
GTY575122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT ARMREST ASSEMBLY *2 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*3 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - -
