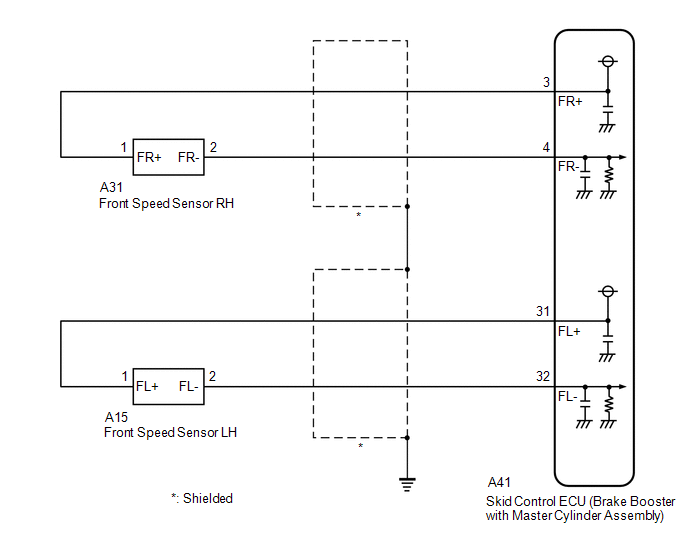

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [11/2015 - 12/2018]: Wiring Diagram

GTY588416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
