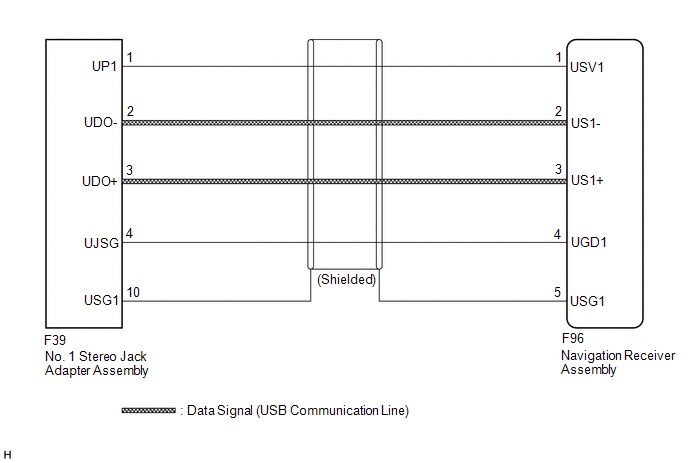

USB Audio System Recognition/Play Error [08/2016 - 12/2018]: Wiring Diagram

GTY724780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
