Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 17

  2. REMOVE ACCELERATOR PEDAL ASSEMBLY
    NOTE:

    This accelerator pedal assembly does not require lubrication.

    Do not apply oil or other lubrication to the accelerator pedal assembly.

    If applied, the accelerator pedal assembly must be replaced.

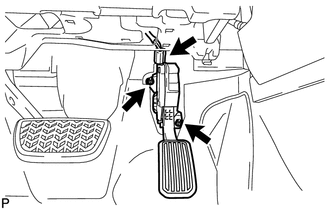

    1. Disconnect the accelerator pedal position sensor connector.
      GTY600565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal assembly.
