Components [08/2015 - ]

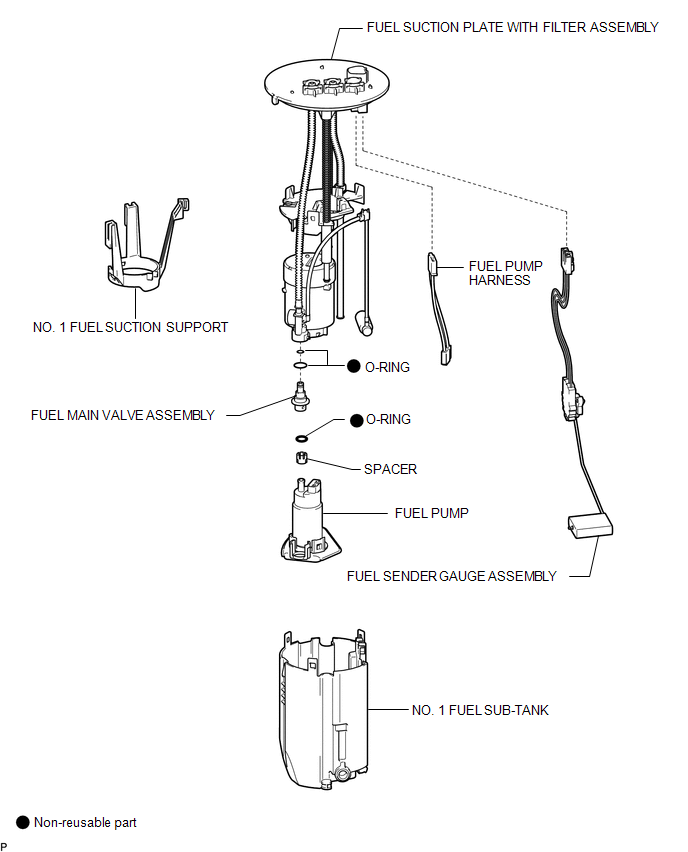

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

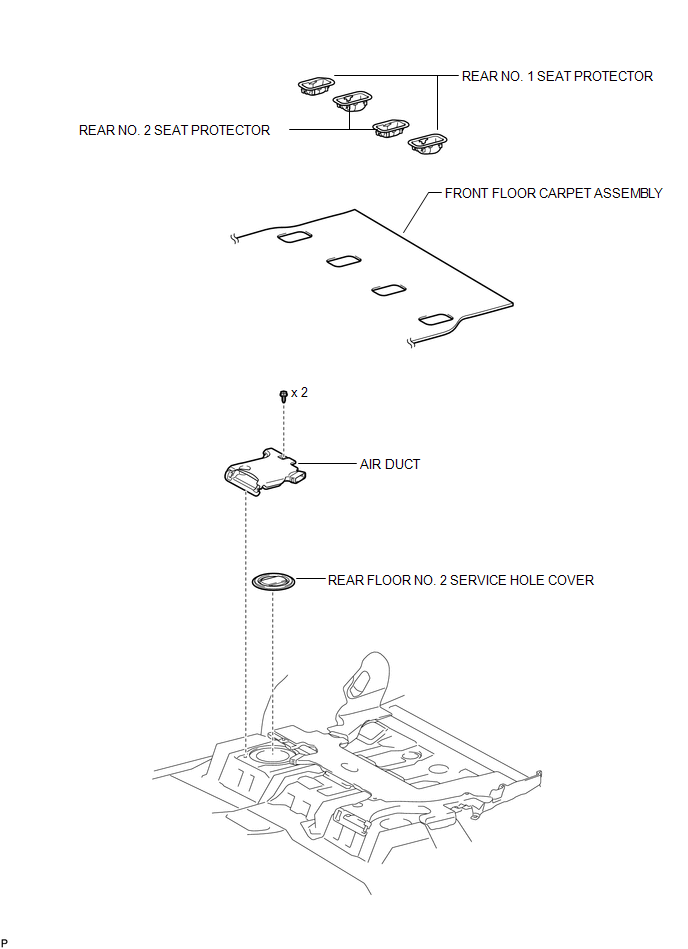

Fig 3: Fuel Pump Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

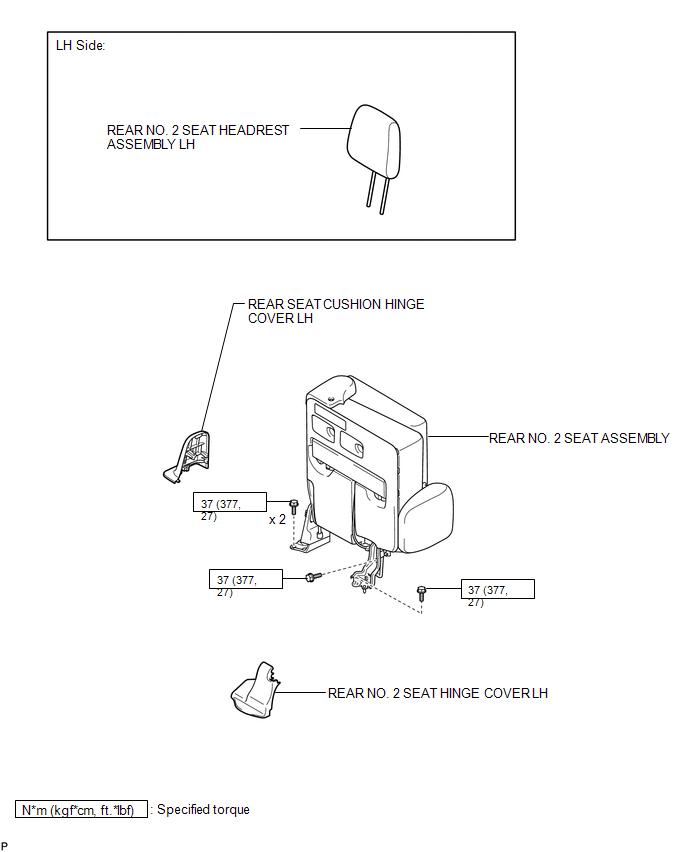

Fig 4: Fuel Pump Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

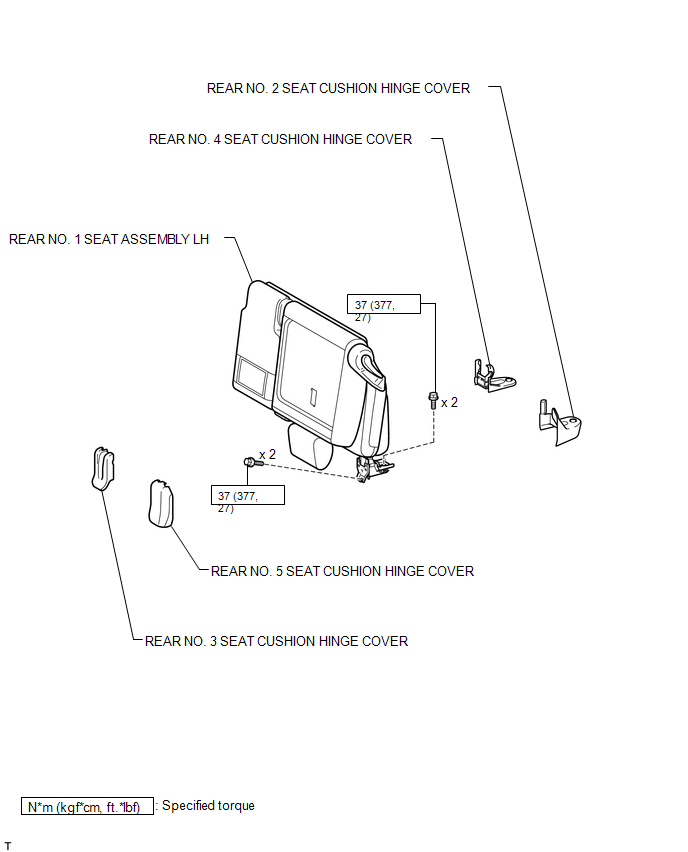

Fig 5: Fuel Pump Replacement Components With Torque Specifications (5 Of 7)

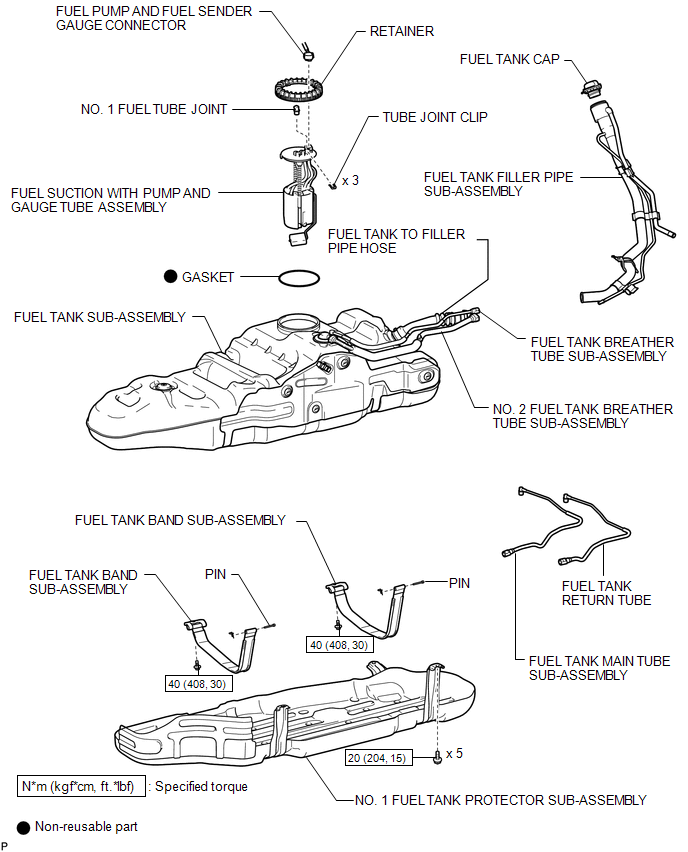

Fig 6: Fuel Pump Replacement Components With Torque Specifications (6 Of 7)

Fig 7: Fuel Pump Replacement Components With Torque Specifications (7 Of 7)
