Home >> Toyota >> 2021 >> Land Cruiser Base >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System - Service Information >> Fuel Injector >> Components [08/2015 - ]

Components [08/2015 - ]

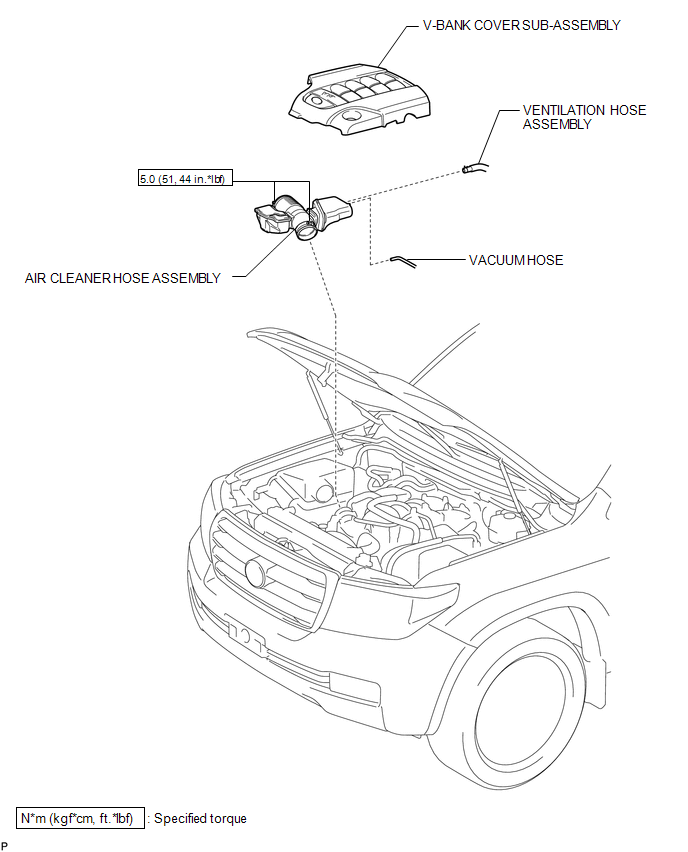

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 2)
GTY581017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

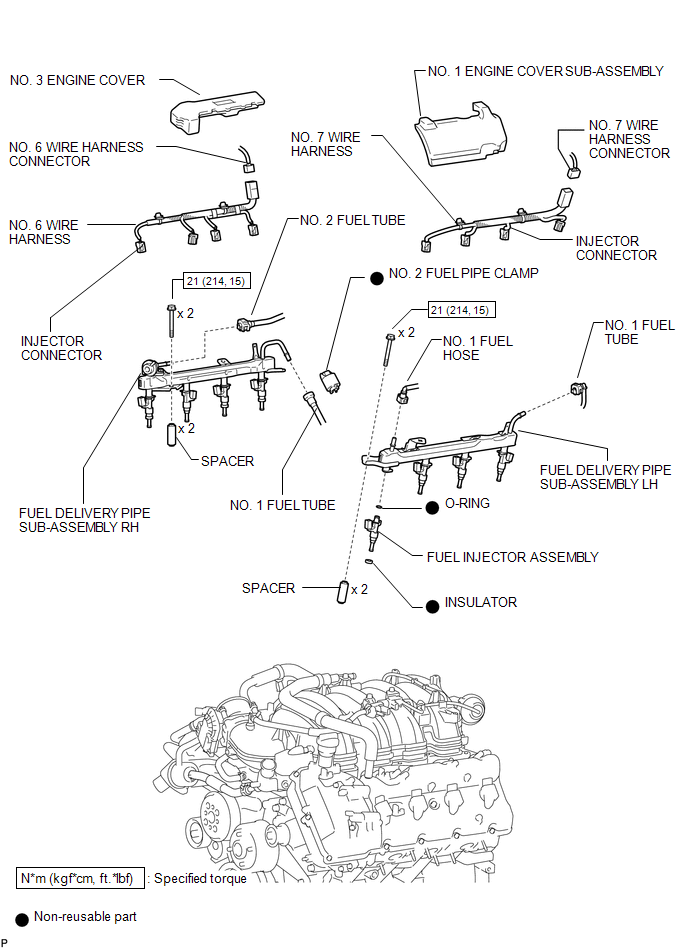

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
GTY559200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
