Components [12/2019 - ]

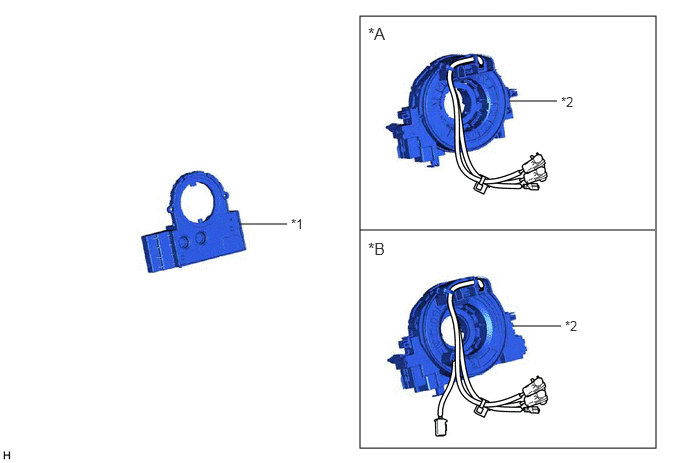

Fig 1: Steering Angle Sensor Replacement Components
GTY892343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Heated Steering Wheel System *B w/ Heated Steering Wheel System
*1 STEERING SENSOR *2 SPIRAL CABLE SUB-ASSEMBLY
