Installation [12/2019 - ]: Procedure
- INSTALL FRONT SPEED SENSOR

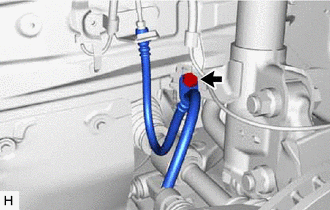

- Install the front speed sensor to the steering knuckle with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
NOTE:- Keep the tip of the front speed sensor and installation hole free of foreign matter.
- Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
- After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
- Do not twist the front speed sensor wire harness when installing it.
- Engage the clamp to install the sensor clamp.NOTE:
Do not twist the front speed sensor wire harness when installing it.

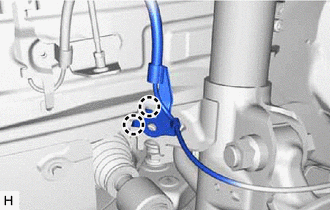

- Engage the 2 claws to install the sensor clamp.NOTE:
Do not twist the front speed sensor wire harness when installing it.
- Install the front flexible hose with the bolt.
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
- Install the sensor clamp with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
NOTE:Do not twist the front speed sensor wire harness when installing it.
- Engage the clamp.NOTE:
Do not twist the front speed sensor wire harness when installing it.
- Connect the front speed sensor connector.
- Return the front fender liner to its original position.NOTE:

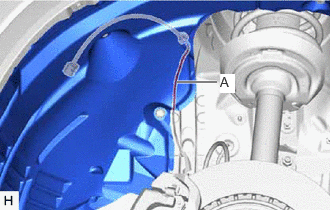

Make sure that part A of the front speed sensor wire harness shown in the illustration is behind the front fender liner.
- Install the front speed sensor to the steering knuckle with the bolt.
- INSTALL FRONT FENDER LINER
- Install the front fender liner with the screw and 6 clips.
- INSTALL FRONT WHEEL OPENING EXTENSION PAD
- INSTALL FRONT WHEEL
Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
- CHECK FOR SPEED SENSOR SIGNAL
for HV Model: Refer to TEST MODE PROCEDURE [12/2019 - 11/2023] , or refer to TEST MODE PROCEDURE [11/2023 - ]
for Gasoline Model: Refer to TEST MODE PROCEDURE [12/2019 - 11/2023] , or refer to TEST MODE PROCEDURE [11/2023 - ]
