Inspection [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for 2WD)
    1. Preparation for check.
      1. Confirm the standard, high and low positions of the link that will be used in the following inspection.
        • The standard position is 53° from the maximum link angle (high) and 113° from the maximum link angle (low).
        • The high position (+36.7°) is 16.3° from the maximum link angle (high).
        • The low position (-33.5°) is 79.5° from the maximum link angle (low).

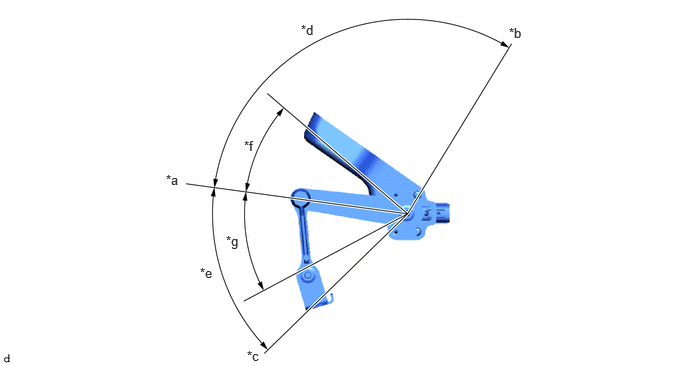

        GTY1027591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Standard Position *b Maximum Link Angle (Low)
        *c Maximum Link Angle (High) *d 113°
        *e 53° *f -33.5°
        *g +36.7° - -
      2. Connect 3 dry cell batteries (1.5 V) in series.
        NOTE:

        Do not use rechargeable batteries as they may not output a voltage of 1.5 V.

      3. Connect a positive (+) lead from the batteries to Q1-3 (SHB) and a negative (-) lead to Q1-1 (SHG).

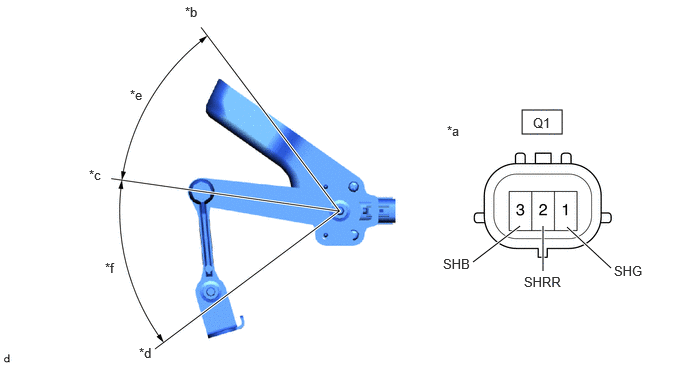

        GTY1027920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Rear Height Control Sensor Sub-assembly LH)        		 *b Low
        *c Standard Position *d High
        *e -45° *f +45°
      4. Measure the voltage between Q1-2 (SHRR) and Q1-1 (SHG) while slowly moving the link up and down.

        Standard Voltage

        Tester Connection Condition Specified Condition
        Q1-1 (SHG) - Q1-2 (SHRR) +45° (High) 4.5 V
        Q1-1 (SHG) - Q1-2 (SHRR) 0° (Standard position) 2.5 V
        Q1-1 (SHG) - Q1-2 (SHRR) -45° (Low) 0.5 V

        If the result is not as specified, replace the rear height control sensor sub-assembly LH.

  2. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for AWD)
    1. Preparation for check
      1. Confirm the standard, high and low positions of the link that will be used in the following inspection.
        • The standard position is 58° from the maximum link angle (high) and 51° from the maximum link angle (low).
        • The high position (+33.85°) is 24.15° from the maximum link angle (high).
        • The low position (-33.85°) is 17.15° from the maximum link angle (low).

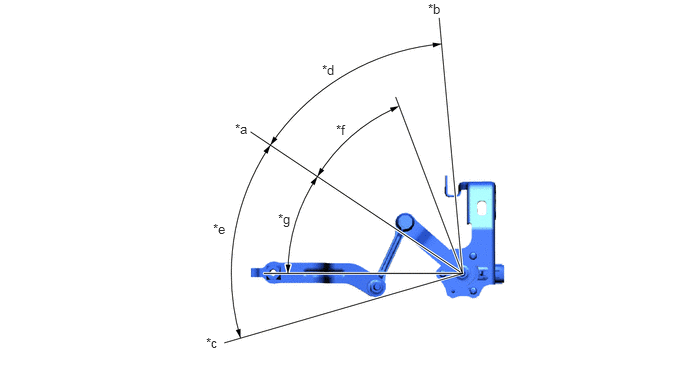

        GTY751919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Standard Position *b Maximum Link Angle (Low)
        *c Maximum Link Angle (High) *d 51°
        *e 58° *f -33.85°
        *g +33.85° - -
      2. Connect 3 dry cell batteries (1.5 V) in series.
        NOTE:

        Do not use rechargeable batteries as they may not output a voltage of 1.5 V.

      3. Connect a positive (+) lead from the batteries to Q1-3 (SHB) and a negative (-) lead to Q1-1 (SHG).

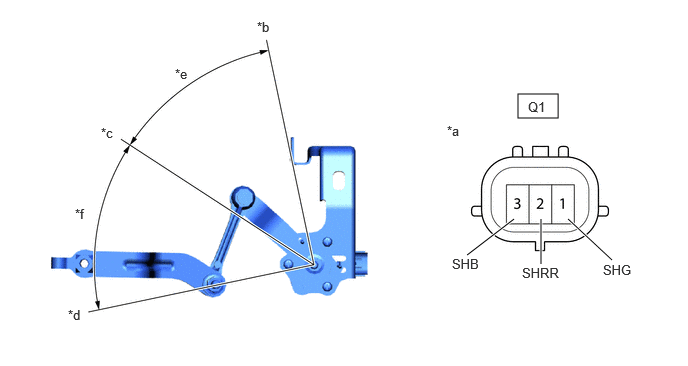

        GTY1028821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Rear Height Control Sensor Sub-assembly LH)        		 *b Low
        *c Standard Position *d High
        *e -45° *f +45°
      4. Measure the voltage between terminals 2 (SHRR) and 1 (SHG) while slowly moving the link up and down.

        Standard Voltage

        Tester Connection Condition Specified Condition
        Q1-1 (SHG) - Q1-2 (SHRR) +45° (High) 4.5 V
        Q1-1 (SHG) - Q1-2 (SHRR) 0° (Standard position) 2.5 V
        Q1-1 (SHG) - Q1-2 (SHRR) -45° (Low) 0.5 V

        If the result is not as specified, replace the rear height control sensor sub-assembly LH.
