Installation [11/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

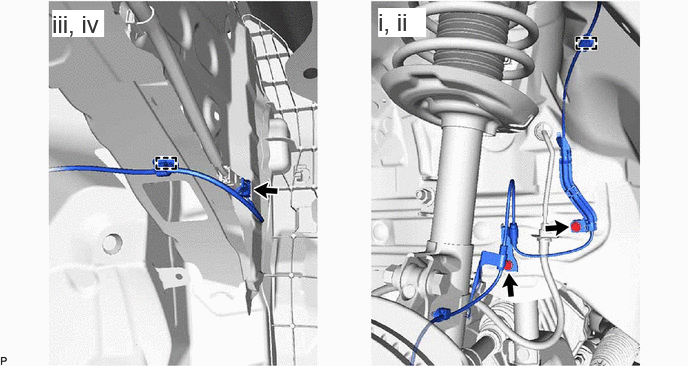

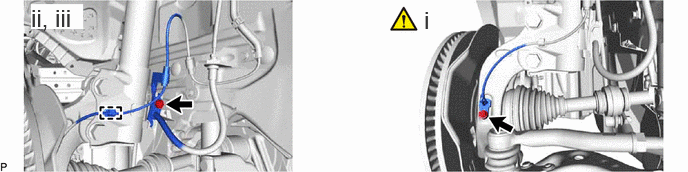

- INSTALL FRONT SPEED SENSOR NOTE:
Do not twist the front speed sensor wire harness when installing it.
- Install the front speed sensor to the steering knuckle with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
NOTE:- Keep the tip of the front speed sensor and installation hole free of foreign matter.
- Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
- After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
- Engage the clamp to the front shock absorber assembly.
- Install the front speed sensor clamp and front flexible hose to the front shock absorber assembly with the bolt.
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
- Install the front speed sensor to the steering knuckle with the bolt.
- Install the 2 front speed sensor clamps with the 2 bolts.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
- Engage the clamp to the vehicle body.
- Engage the clamp to the vehicle body.
- Connect the connector.
- Install the 2 front speed sensor clamps with the 2 bolts.
- INSTALL FRONT FENDER LINER
- INSTALL WHEEL OPENING MOULDING
Refer to INSTALLATION [09/2021 - ]
- INSTALL FRONT WHEEL
Refer to INSTALLATION [09/2021 - ]
- CHECK FOR SPEED SENSOR SIGNAL
- for HEV Model:
Refer to TEST MODE PROCEDURE [11/2022 - ]
- for Gasoline Model:
Refer to TEST MODE PROCEDURE [11/2022 - ]
- for HEV Model:
