Components [12/2019 - 10/2022]

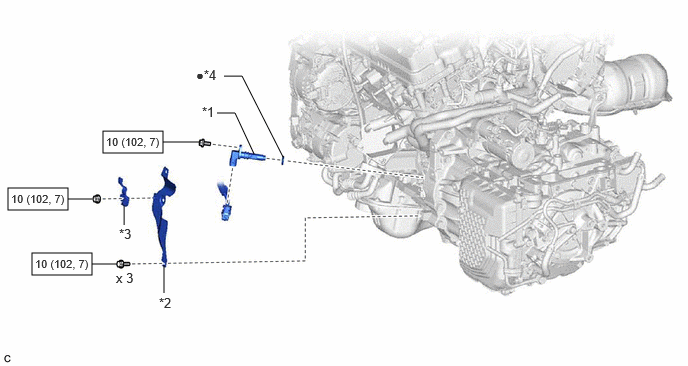

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT POSITION SENSOR | *2 | CRANKSHAFT POSITION SENSOR PROTECTOR |
| *3 | HOSE CLAMP | *4 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
