Removal [08/2016 - ]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 2 FORWARD RECOGNITION COVER

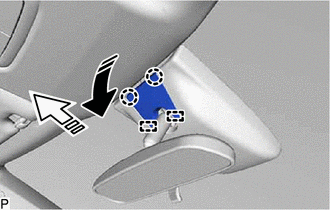

    1. Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) in the illustration to disengage the 2 claws.
      GTY708916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

    2. Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.
  2. REMOVE NO. 1 FORWARD RECOGNITION COVER

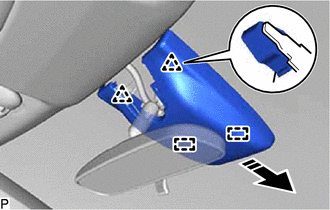

    1. Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.
      GTY713904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

  3. REMOVE FORWARD RECOGNITION LATCH

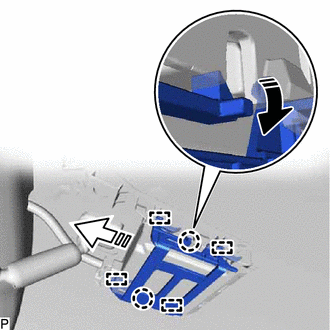

    1. Disengage the 2 claws in the direction indicated by the arrow (1) in the illustration.
      GTY715889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the 4 guides in the direction indicated by the arrow (2) in the illustration to remove the forward recognition latch.
  4. REMOVE FORWARD RECOGNITION CAMERA

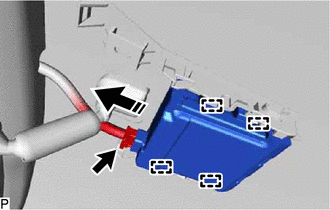

    1. Disconnect the connector.
      GTY725474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the forward recognition camera has been struck or dropped, replace it with a new one.
      • Do not apply excessive force.
