Removal [08/2013 - ]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

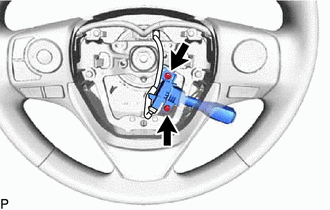

    1. Remove the 2 screws.
      GTY445481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

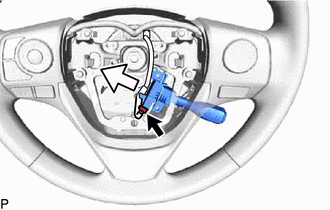

    2. Disconnect the connector and remove the cruise control main switch as shown in the illustration.
      GTY455092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
