Inspection [08/2013 - ]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Measure the resistance according to the value(s) in the table below.

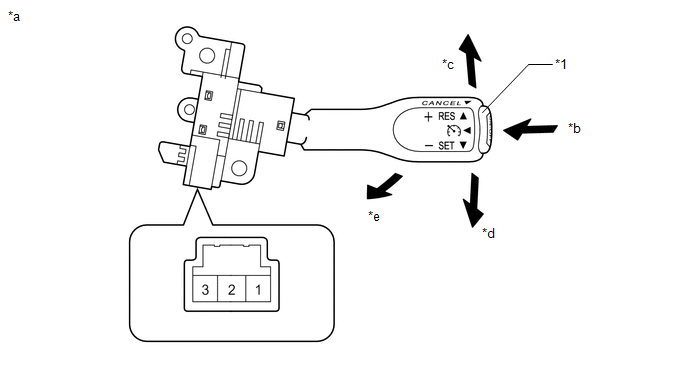

      GTY438811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cruise Control Switch (ON-OFF button) - -
      *a Component without harness connected
      (Cruise Control Main Switch (Cruise Control Switch))      		 *b ON-OFF
      *c +/RES *d -/SET
      *e CANCEL - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 - 3 Cruise control switch (ON-OFF button) released 1 MΩ or higher
      Cruise control switch (ON-OFF button) pushed Below 2.5 Ω
      +/RES 235 to 245 Ω
      -/SET 617 to 643 Ω
      CANCEL 1509 to 1571 Ω
