REMOVE FRONT WIPER BLADE

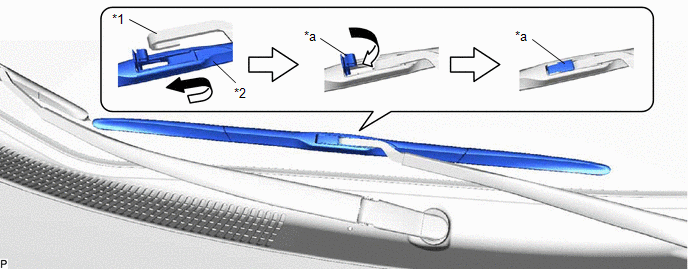

Pull up the holder of the front wiper blade.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Wiper Arm	*2	Front Wiper Blade
*a	Holder	-	-

Remove the front wiper blade from the front wiper arm as shown in the illustration.
NOTE:
Do not lower the front wiper arm with the front wiper blade removed. The arm tip may damage the windshield glass surface.

REMOVE WIPER RUBBER

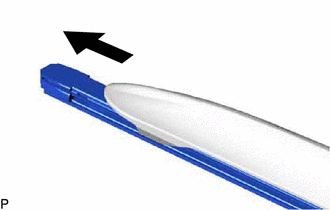

Remove the wiper rubber with the front wiper rubber backing plates from the front wiper blade.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

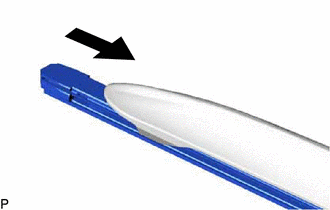

Remove the 2 front wiper rubber backing plates from the wiper rubber.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL WIPER RUBBER

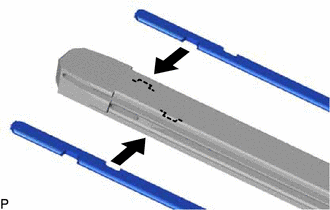

Install the 2 front wiper rubber backing plates to the wiper rubber.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Align the protrusions on the wiper rubber with the notches of the backing plates.
Align the curve of the backing plates with the windshield glass.

Install the wiper rubber to the front wiper blade as shown in the illustration.

NOTE:

Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

INSTALL FRONT WIPER BLADE

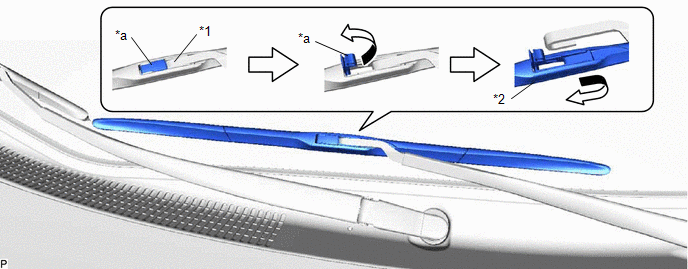

Install the front wiper blade as shown in the illustration.

*1	Front Wiper Arm	*2	Front Wiper Blade
*a	Holder	-	-

Install the holder of the front wiper blade.
