Power DISTIBUTION System - Service Information
>>
Integration Relay
>>
Components [06/2018 - 01/2019]
Components [06/2018 - 01/2019]

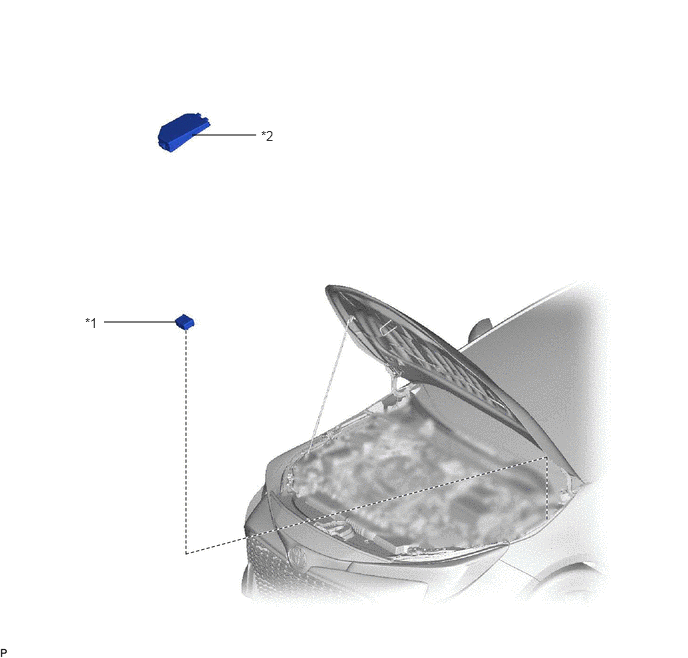

Fig 1: Integration Relay Replacement Components [06/2018 - 01/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 1 INTEGRATION RELAY
*2
NO. 1 RELAY BLOCK COVER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
