Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE MASS AIR FLOW METER

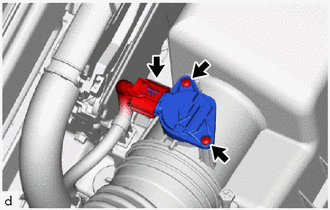

    1. Disconnect the mass air flow meter connector.
      GTY767230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter has been struck or dropped, replace it.
