Components [02/2017 - ]
| Callout | Description | Callout | Description |

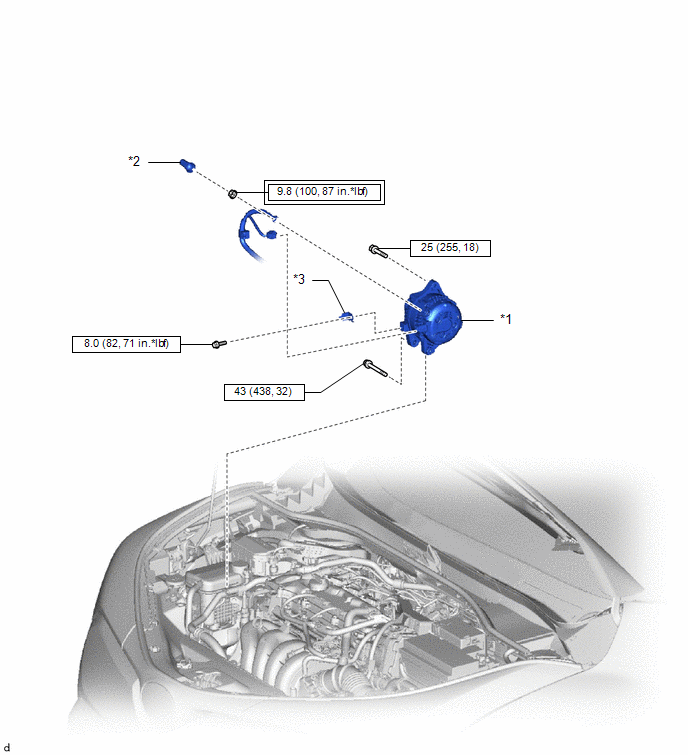

| *1 | GENERATOR ASSEMBLY | *2 | TERMINAL CAP |
| *3 | WIRE HARNESS CLAMP BRACKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
| Callout | Description | Callout | Description |

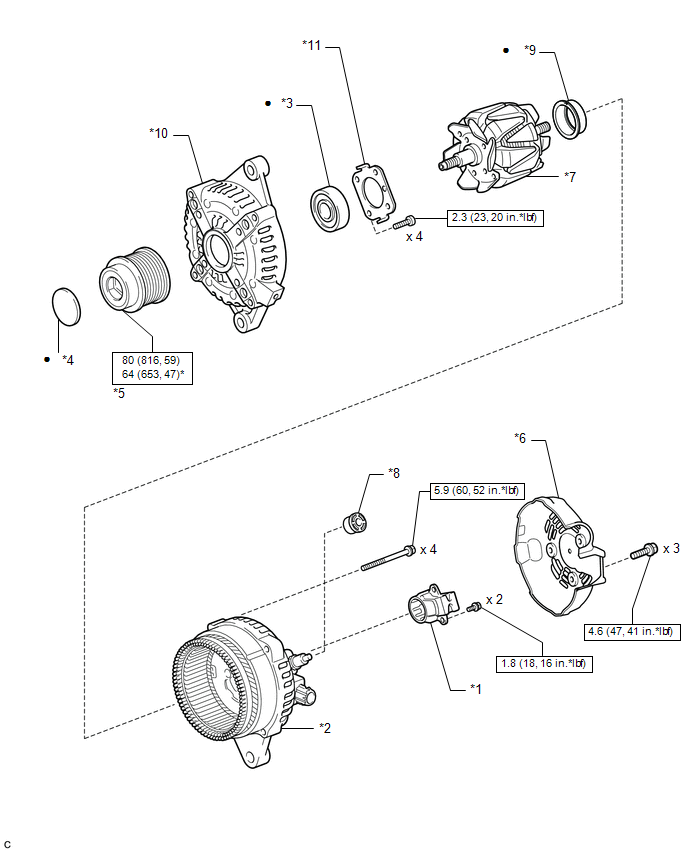

| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR DRIVE END FRAME BEARING | *4 | GENERATOR PULLEY CAP |
| *5 | GENERATOR PULLEY WITH CLUTCH | *6 | GENERATOR REAR END COVER |
| *7 | GENERATOR ROTOR ASSEMBLY | *8 | GENERATOR TERMINAL INSULATOR |
| *9 | BEARING COVER PACKING | *10 | GENERATOR DRIVE END FRAME |
| *11 | RETAINER PLATE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
