Installation [08/2020 - ]: Procedure

  1. INSTALL NO. 1 INTEGRATION RELAY
    1. Connect the 2 connectors.

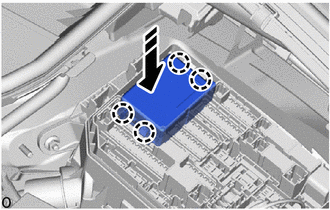

    2. Engage the claws to install the No. 1 integration relay as shown in the illustration.
      GTY753587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL NO. 1 RELAY BLOCK COVER

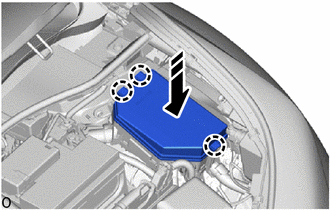

    1. Engage the claws to install the No. 1 relay block cover as shown in the illustration.
      GTY756936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [08/2020 - ]
