Components [02/2017 - ]

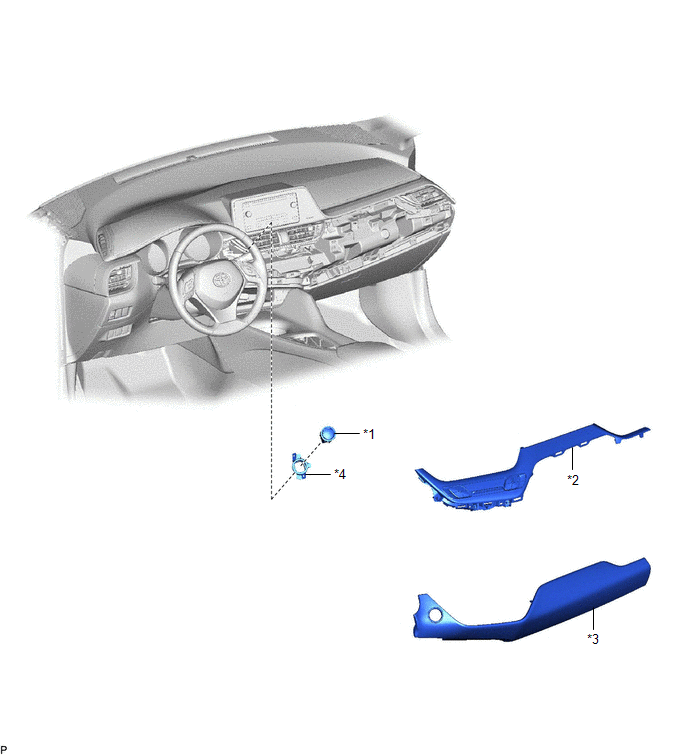

Fig 1: Engine Switch Replacement Components
GTY747172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE SWITCH *2 INSTRUMENT CLUSTER FINISH LOWER CENTER PANEL SUB-ASSEMBLY
*3 INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY *4 STARTER SWITCH BEZEL
