Components [02/2017 - ]

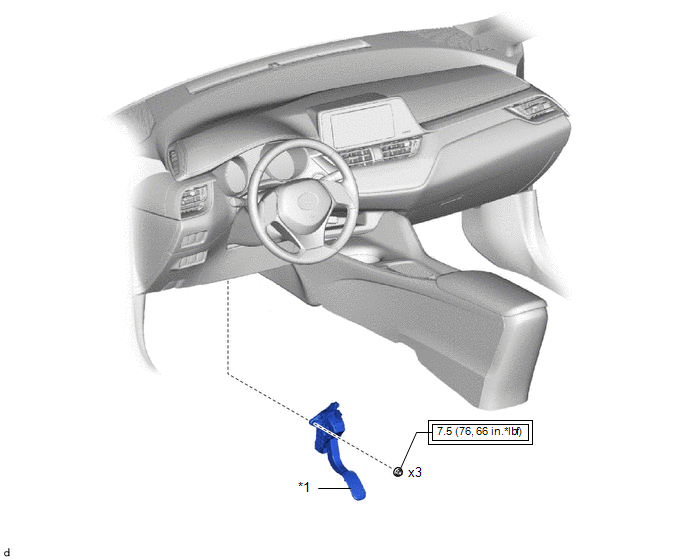

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY768662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATOR PEDAL SENSOR ASSEMBLY - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
