Home >> Toyota >> 2021 >> 4Runner Trail, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Service Information >> Power Steering Oil Pressure Switch >> Removal [08/2015 - ] >> Procedure

Removal [08/2015 - ]: Procedure

  1. DRAIN POWER STEERING FLUID

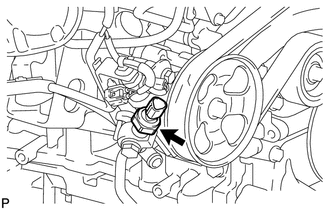

  2. REMOVE POWER STEERING OIL PRESSURE SWITCH
    1. Disconnect the oil pressure switch connector.
      GTY222074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 24 mm deep socket wrench, remove the oil pressure switch.
