LEMON Manuals: Even more car manuals for everyone
Home >> Toyota >> 2021 >> 4Runner TRD Off-Road >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery / Charging System - Service Information >> Generator >> Components [08/2015 - ]

Components [08/2015 - ]

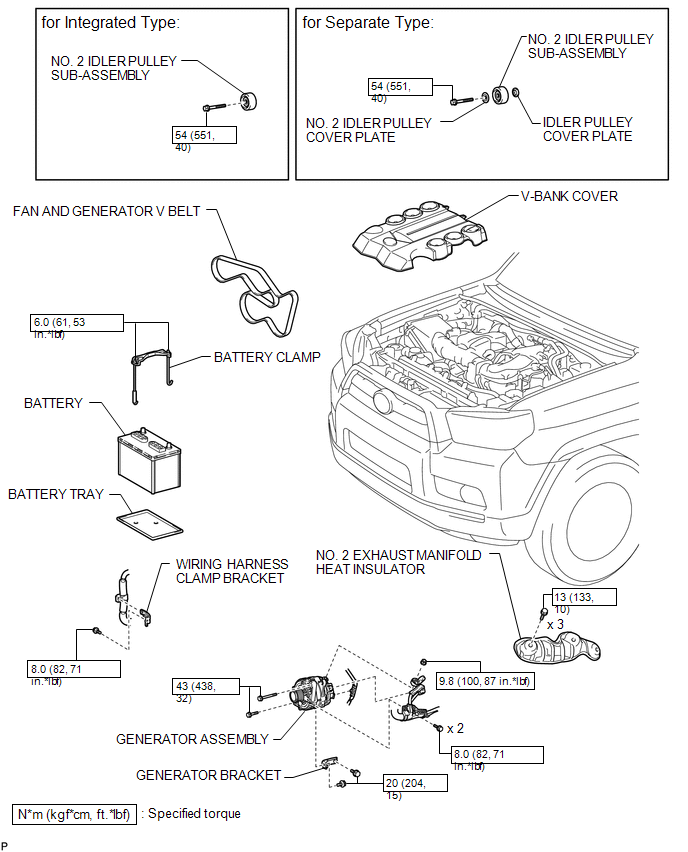

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
GTY932428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

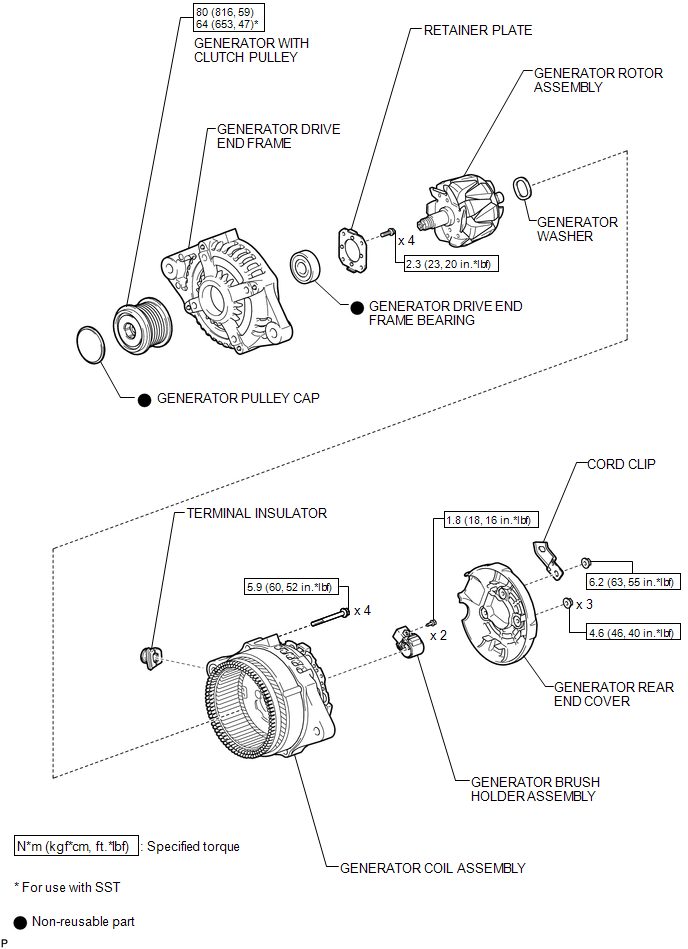

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
GTY695804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
