Removal [08/2015 - ]: Procedure

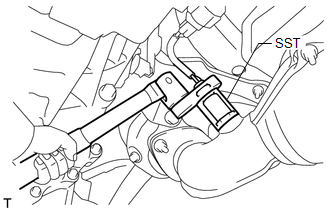

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Disconnect the sensor connector.
    2. Using SST, remove the sensor.
      GTY697249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010

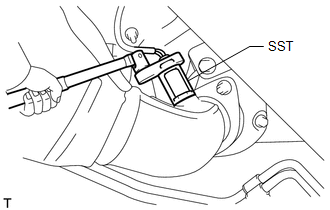

  2. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
    1. Using SST, remove the sensor.
      GTY214769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
