Components [07/2020 - ]

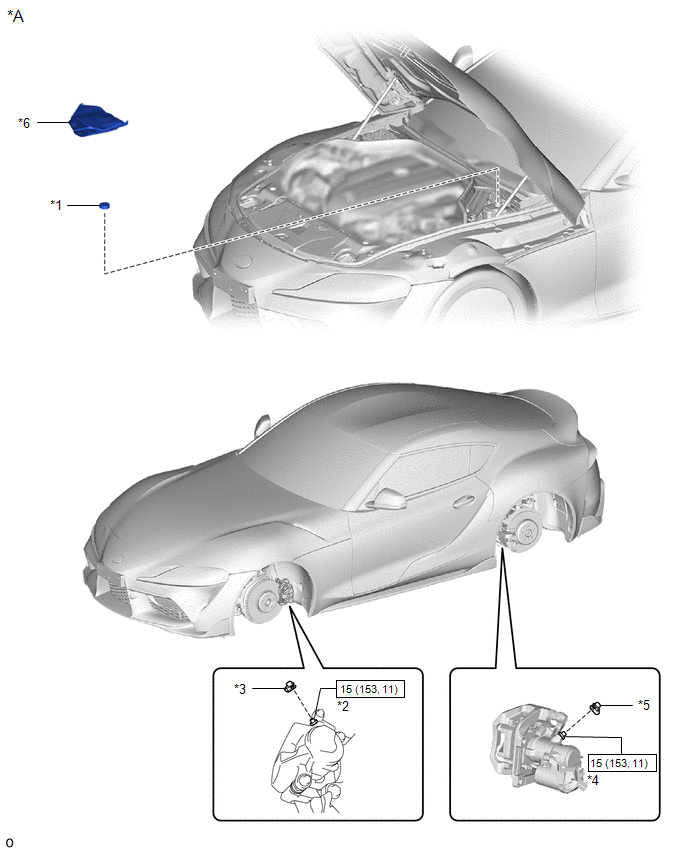

Fig 1: Brake Fluid Replacement Components With Torque Specifications [07/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except 4-Pot Front Caliper	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP	*2	FRONT DISC BRAKE BLEEDER PLUG
*3	FRONT DISC BRAKE BLEEDER PLUG CAP	*4	REAR DISC BRAKE BLEEDER PLUG
*5	REAR DISC BRAKE BLEEDER PLUG CAP	*6	COWL VENT COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

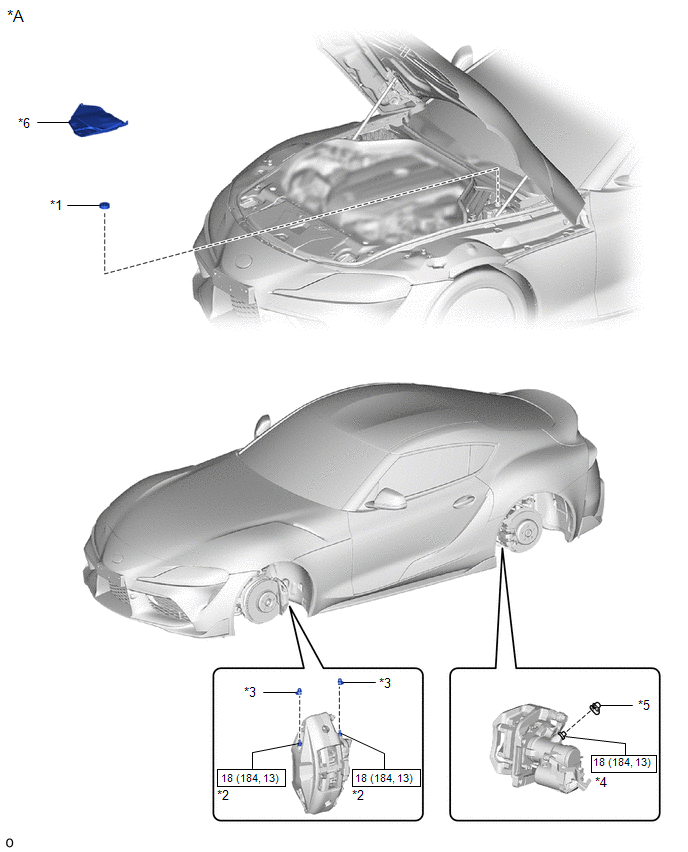

Fig 2: Brake Fluid Replacement Components With Torque Specifications [07/2020 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	for 4-Pot Front Caliper	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP	*2	FRONT DISC BRAKE BLEEDER PLUG
*3	FRONT DISC BRAKE BLEEDER PLUG CAP	*4	REAR DISC BRAKE BLEEDER PLUG
*5	REAR DISC BRAKE BLEEDER PLUG CAP	*6	COWL VENT COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
