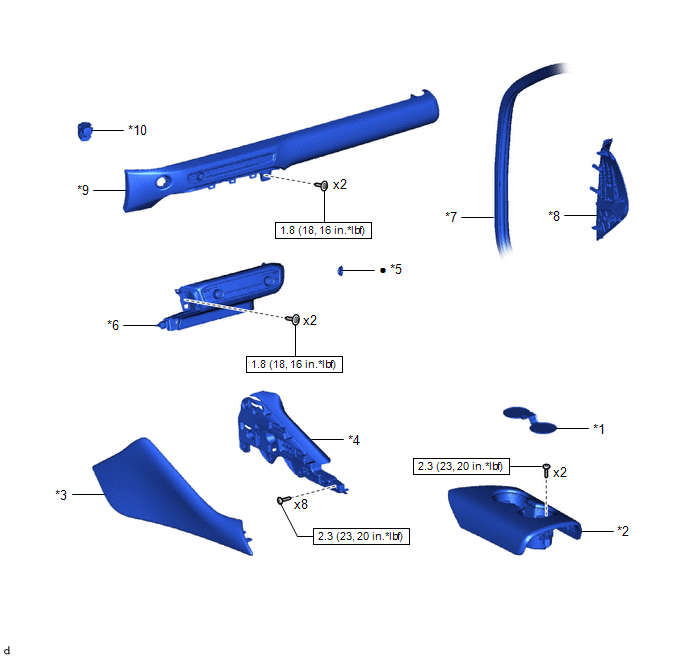

Components [03/2019 - ]
| Callout | Description | Callout | Description |
| *1 | NO. 1 CONSOLE BOX SILENCER PAD | *2 | FRONT CONSOLE ARMREST ASSEMBLY |
| *3 | CONSOLE SIDE PANEL | *4 | CONSOLE PANEL AND CONSOLE PANEL RETAINER |
| *5 | RUBBER PLUG | *6 | INSTRUMENT PANEL FINISH LOWER PANEL |
| *7 | FRONT DOOR OPENING TRIM WEATHERSTRIP | *8 | NO. 2 INSTRUMENT SIDE PANEL |
| *9 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *10 | PUSH START SWITCH |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
