Caution / Notice / Hint

WARNING:
  • Pyrotechnic components.

    Danger! Life-threatening injuries!

    • All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
    • Replace any damaged part or ones that have been dropped.
    • For additional information see:

      Refer to PRECAUTION [03/2019 - ]

  • Airbag unit.

    Danger! Life-threatening injuries!

    Fig 1: SRS System Airbag Precautionary Notices
    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Before performing any work on the airbag, always disconnect the battery earth lead from the battery.

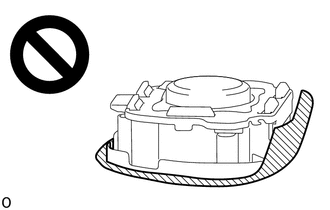

    • Airbag unit may only be set down with the cushion (airbag itself) facing upwards
      GTY847342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Cushion (Airbag Itself)
    • For additional information see:

      Refer to PRECAUTION [03/2019 - ]
