4WD Control Switch
>>
Components [08/2017 - ]
Components [08/2017 - ]

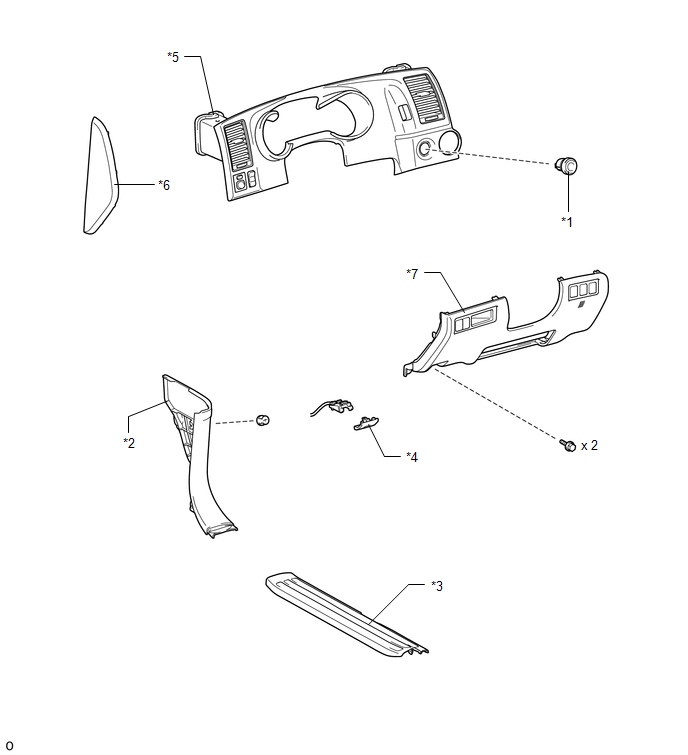

Fig 1: 4WD Control Switch Replacement Components [08/2017 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
4WD CONTROL SWITCH
*2
COWL SIDE TRIM BOARD LH
*3
FRONT DOOR SCUFF PLATE LH
*4
HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*5
INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*6
INSTRUMENT SIDE PANEL LH
*7
LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
-
-
