Removal [08/2015 - 08/2017]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14

  3. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 15

  4. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  6. REMOVE SKID CONTROL BUZZER ASSEMBLY

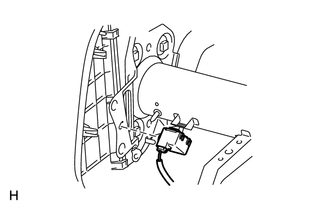

    1. Detach the clamp and remove the buzzer.
      GTY605486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the buzzer connector.
