Components [08/2017 - ]

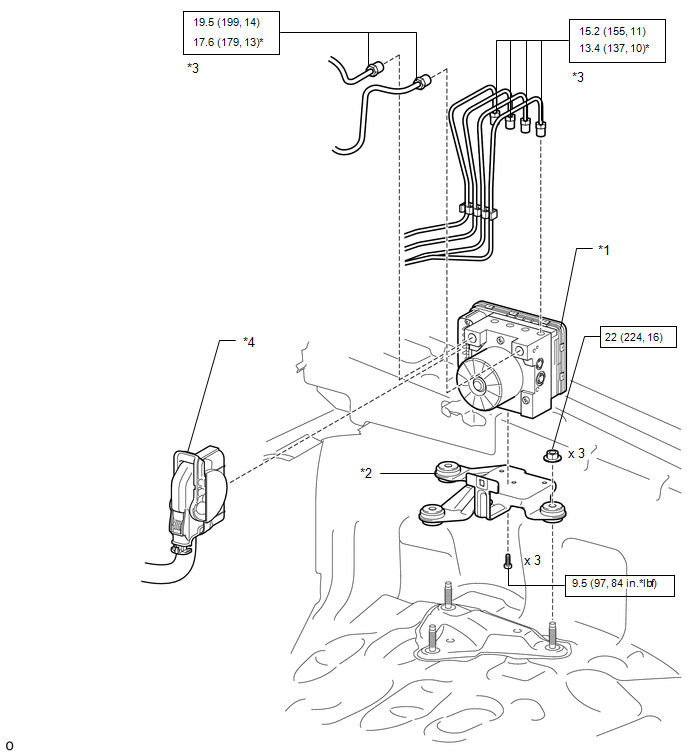

Fig 1: Brake Actuator Replacement Components With Torque Specifications [08/2017 - ]
GTY761744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE ACTUATOR ASSEMBLY *2 BRAKE ACTUATOR BRACKET ASSEMBLY
*3 BRAKE TUBE *4 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
