Components [08/2015 - 08/2017]
Components [08/2015 - 08/2017]

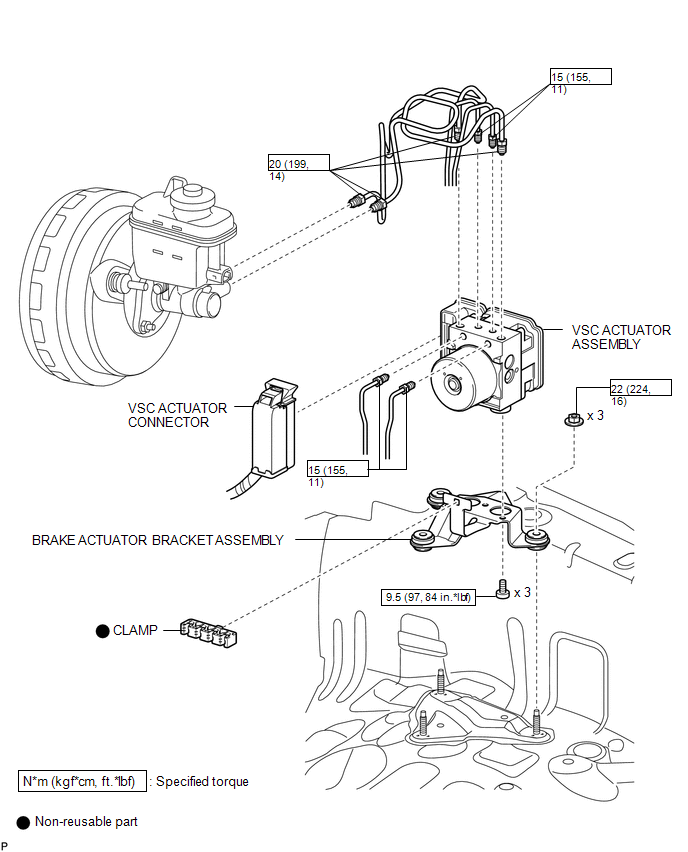

Fig 1: Brake Actuator Replacement Components With Torque Specifications [08/2015 - 08/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
