Components [08/2017 - ]

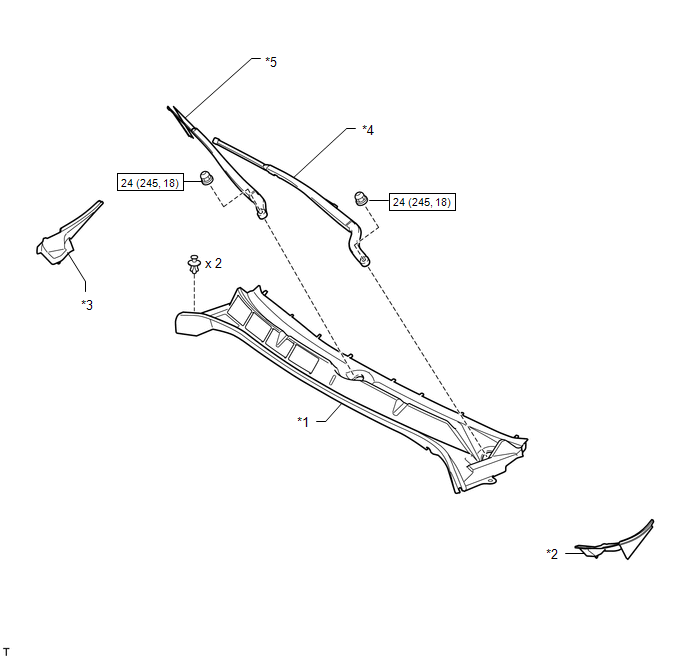

Fig 1: Windshield Glass Replacement Components With Torque Specifications [08/2017 - ] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT FENDER TO COWL SIDE SEAL LH
*3	FRONT FENDER TO COWL SIDE SEAL RH	*4	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*5	FRONT WIPER ARM AND BLADE ASSEMBLY RH	-	-
	N.m (kgf.cm, ft..lbf): Specified torque	-	-

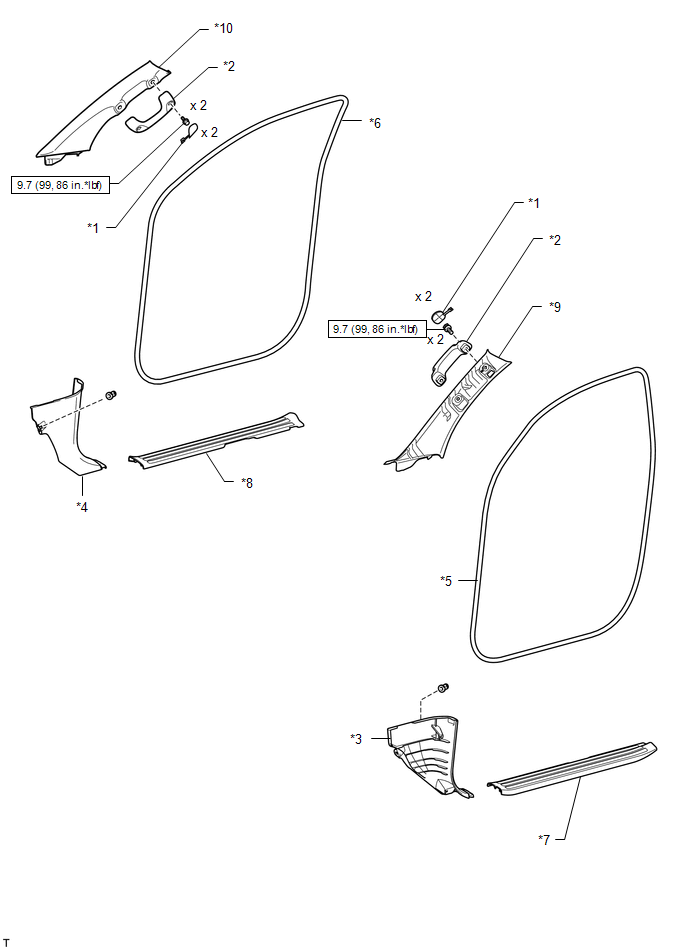

Fig 2: Windshield Glass Replacement Components With Torque Specifications [08/2017 - ] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ASSIST GRIP PLUG	*2	ASSIST GRIP SUB-ASSEMBLY
*3	COWL SIDE TRIM BOARD LH	*4	COWL SIDE TRIM BOARD RH
*5	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*6	FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*7	FRONT DOOR SCUFF PLATE LH	*8	FRONT DOOR SCUFF PLATE RH
*9	FRONT PILLAR GARNISH LH	*10	FRONT PILLAR GARNISH RH
	N.m (kgf.cm, ft..lbf): Specified torque	-	-

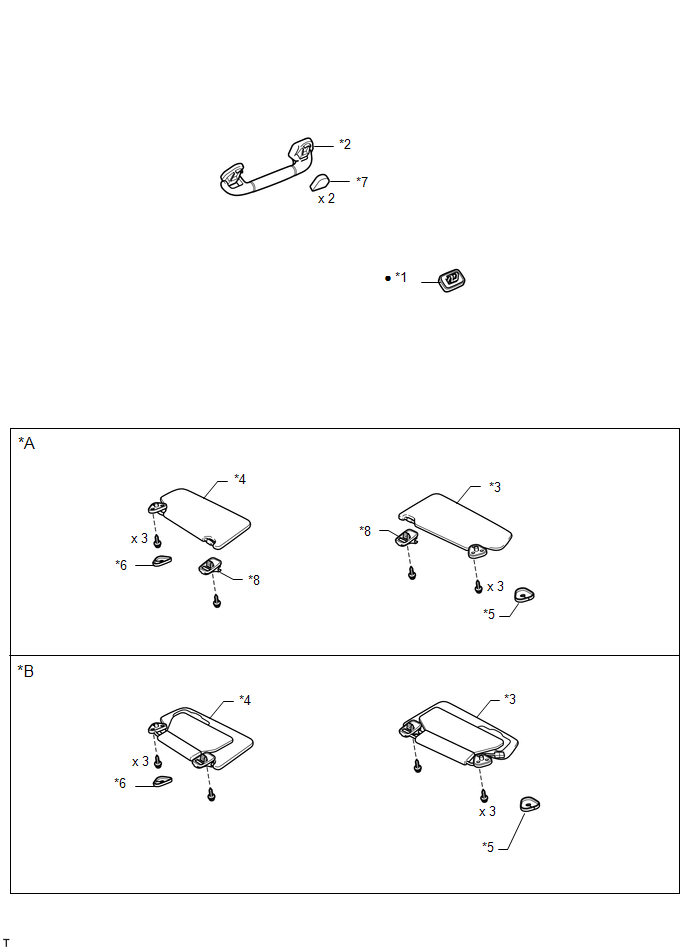

Fig 3: Windshield Glass Replacement Components [08/2017 - ] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

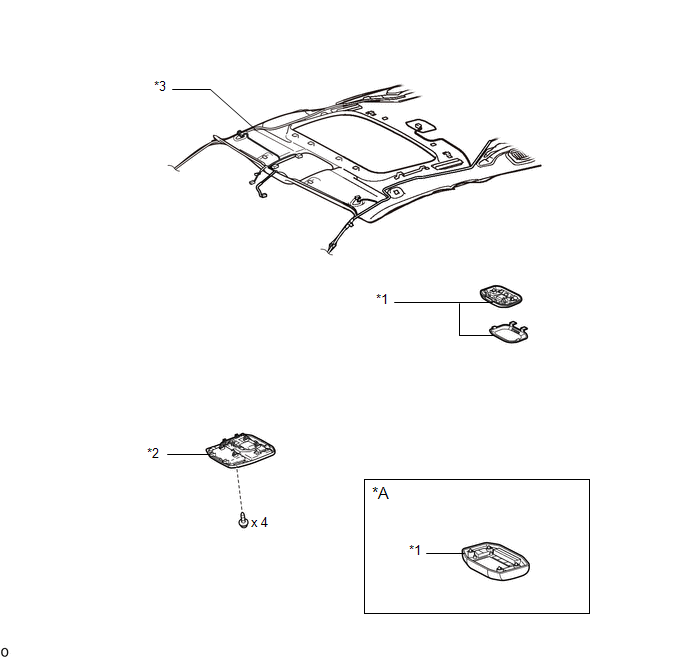

Fig 4: Windshield Glass Replacement Components [08/2017 - ] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear Seat Entertainment System	-	-
*1	NO. 1 ROOM LIGHT ASSEMBLY	*2	ROOF CONSOLE BOX ASSEMBLY
*3	ROOF HEADLINING ASSEMBLY	-	-

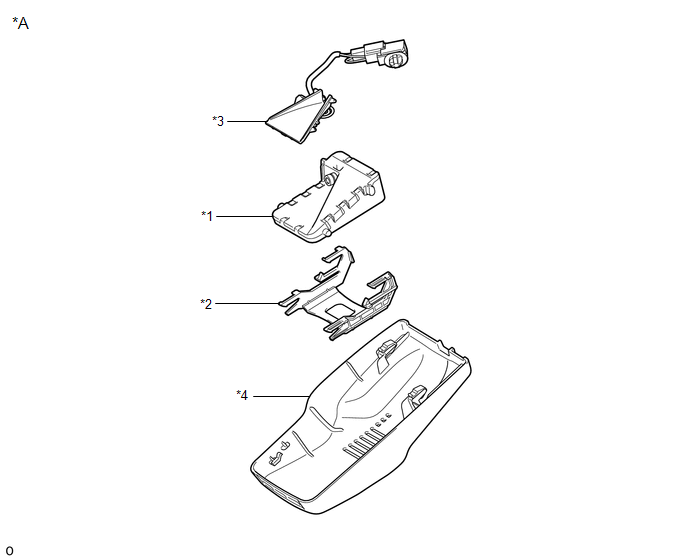

Fig 5: Windshield Glass Replacement Components [08/2017 - ] (5 Of 6)

*A	w/ Lane Departure Alert System	-	-
*1	FORWARD RECOGNITION CAMERA	*2	FORWARD RECOGNITION LATCH
*3	FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY	*4	NO. 1 FORWARD RECOGNITION COVER

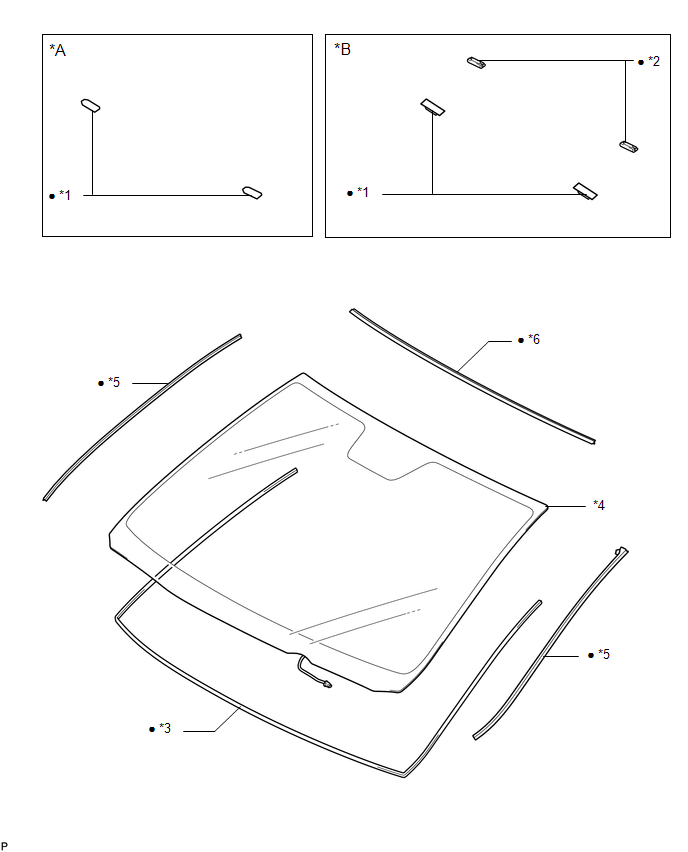

Fig 6: Windshield Glass Replacement Components [08/2017 - ] (6 Of 6)

*A	for 1-piece Type	*B	for 2-piece Type
*1	NO. 1 WINDSHIELD GLASS STOPPER	*2	NO. 2 WINDSHIELD GLASS STOPPER
*3	WINDOW GLASS ADHESIVE DAM	*4	WINDSHIELD GLASS
*5	WINDSHIELD OUTSIDE MOULDING	*6	WINDSHIELD OUTSIDE UPPER MOULDING
•	Non-reusable part	-	-
